MOTEUR GR2 17CM3 BIDI VIS TRAVERSAN
Hydrokit Part Number : M217B47ADS
Technical information
Technical data
| Groupe | Groupe 2 | ||
| Displacement | 17 | cc/rev | |
| Rotation | Bidirectional | ||

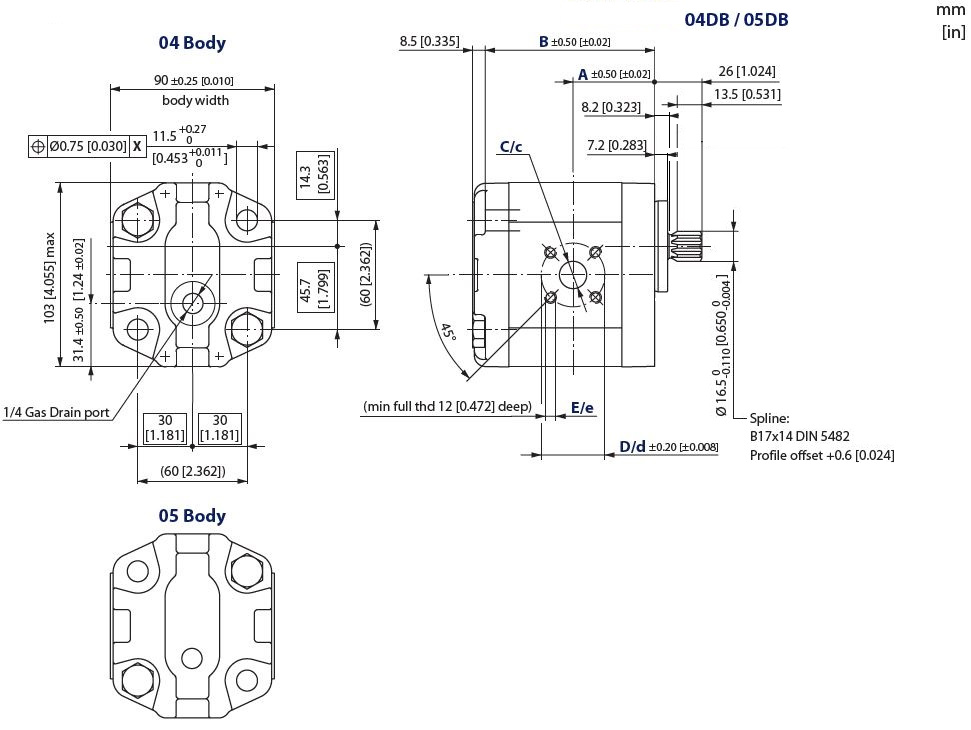

| Flange | A vis traversantes 2 trous diagonal droite | ||
| Shaft type | Splined |  |
|
| Shaft size | 9 dents DIN 5482 L14 | ||
| Type de bride | Allemande (Carré) |  |
|

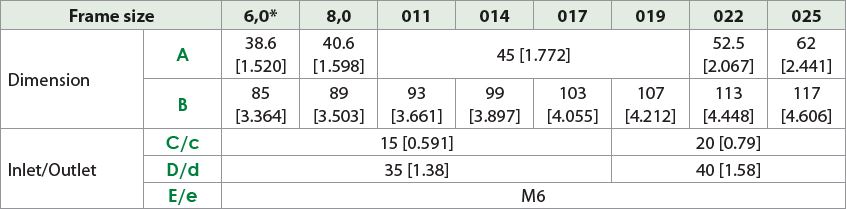

| Suction port dimensions | 35x35 (Vis M6x100) | ||
| Discharge port dimensions | 35x35 (vis M6x100) | ||
| Marque | Sauer Danfoss / Turolla |
