Motor 3000 W 24 VDC diameter 151 mm
Hydrokit Part Number : M243000VHDHY
Technical information
S2 (16Min) Voltage: 24 volts DC current.
Power: 3000 watts. Ventilated: Yes.
Maximum operating time: 16 minutes.
Power: 3000 watts. Ventilated: Yes.
Maximum operating time: 16 minutes.

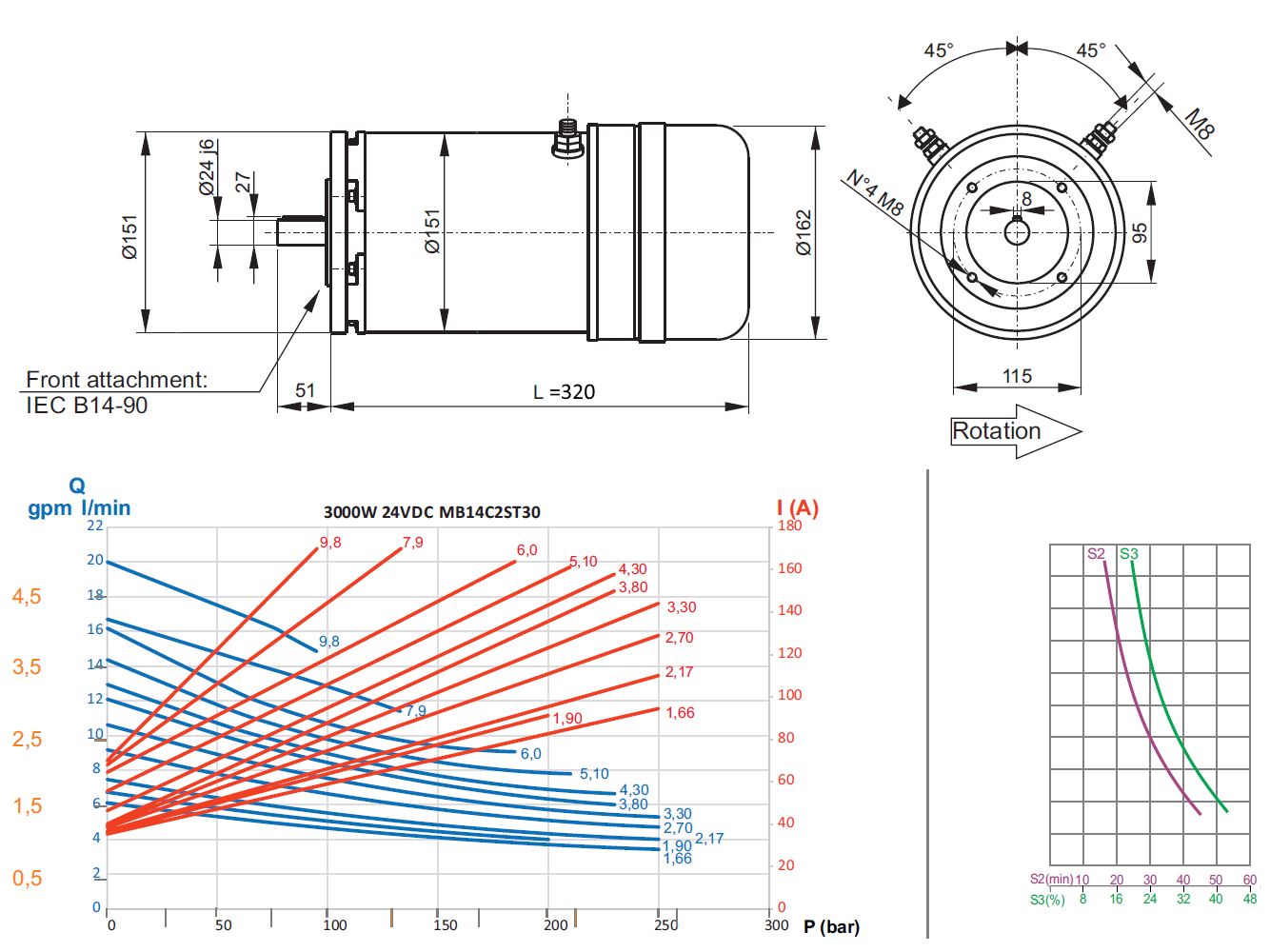

Technical data
| Motor type | Courant Continu | ||
| Hauteur d'axe | 90 | mm |  |
| Diamètre extérieur | 151 | mm | |
| Size of the shaft | Ø 24mm | ||
| Puissance (KW) | 3 | KiloWatt | |
| Voltage | 24 VCC | Volt | |
| Rotation | Right - CW | ||
| Vitesse en sortie | 1700 | Tr/min | |
| Facteur de service | S2 - 13min | ||
| Indice de protection | IP20 |
