Assist'Load
A lighted driving aid panel

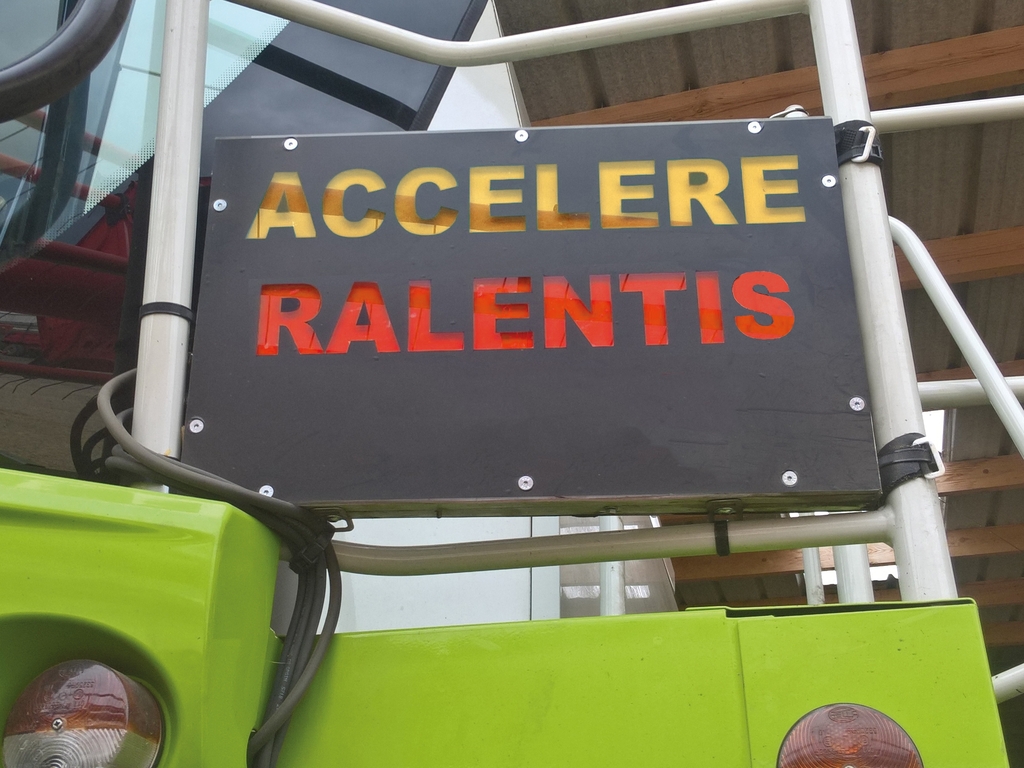

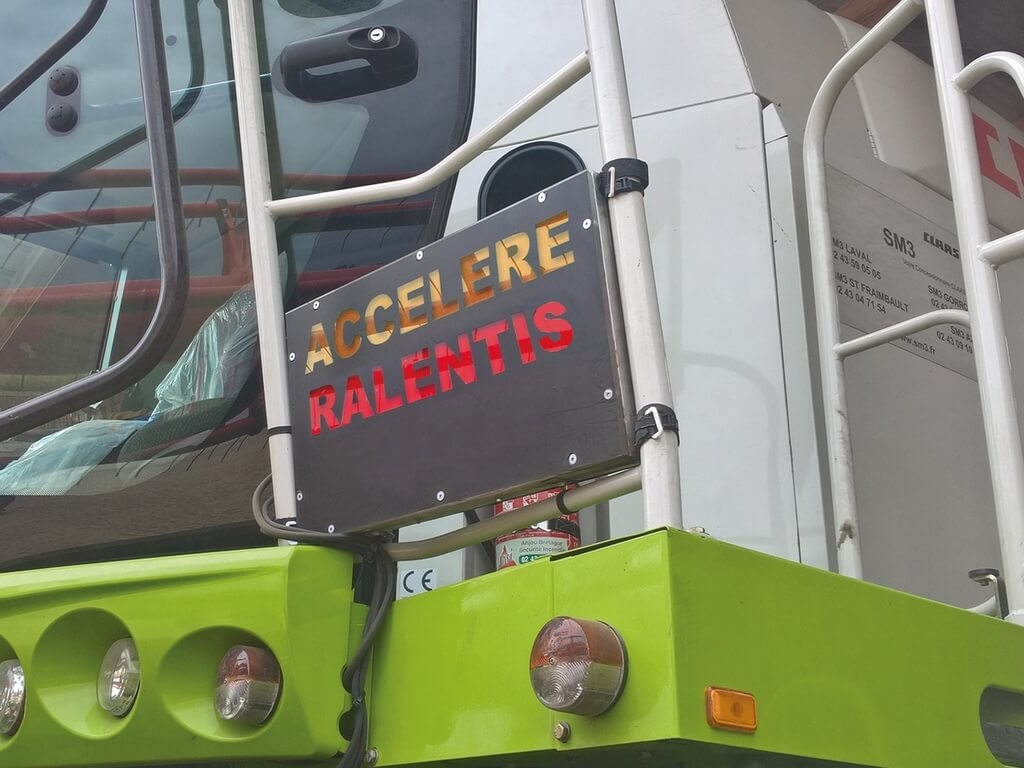

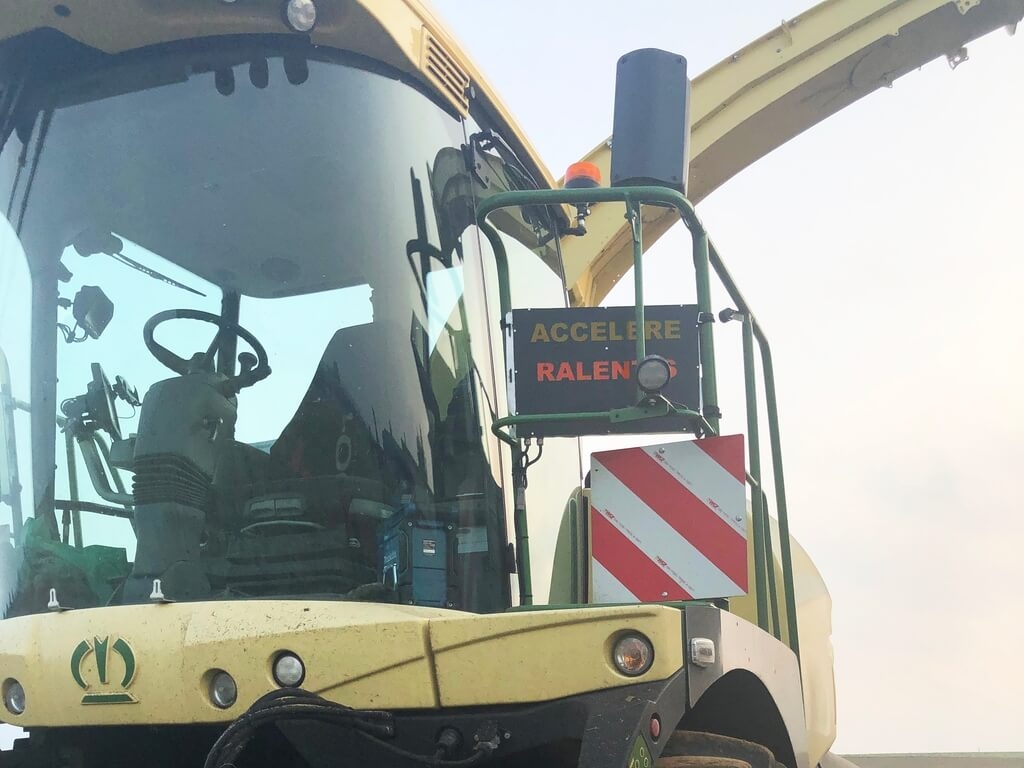

With a view to continuously improving the safety of equipment, Hydrokit has developed a new innovative solution selected at the SIMA Awards 2021 which enables the exchange of information between drivers. A panel with a luminous text is installed on the side of the self-propelled truck's cab allowing it to be seen by the trailer driver. The self-propelled driver can thus indicate to the trailer driver to move forward or slow down depending on the filling during threshing or silage work.
Two different indications are present on this sign:
-
ACCELERATES: requests to move forward relative to the self-propelled vehicle.
-
RALENTIS : request to slow down the trailer in relation to the self-propelled vehicle
The driver of the self-propelled machine presses switches or pedals in the cab to indicate actions.
Benefits
1 - BETTER PERFORMANCE : no loss of raw material, cereals, corn...
2 - EASIER DRIVING : Thanks to the panel, it is easier to adapt the driving of trailers on harvesting and silage sites...
3 - VIEWABLE : Very legible text due to the design of the sign.
4 - EASY TO USE : understandable at first use.
5 - TIME SAVINGS : faster trailer change.
6 - PRACTICE : easy to install system.
7 - LENGTH : robust product.

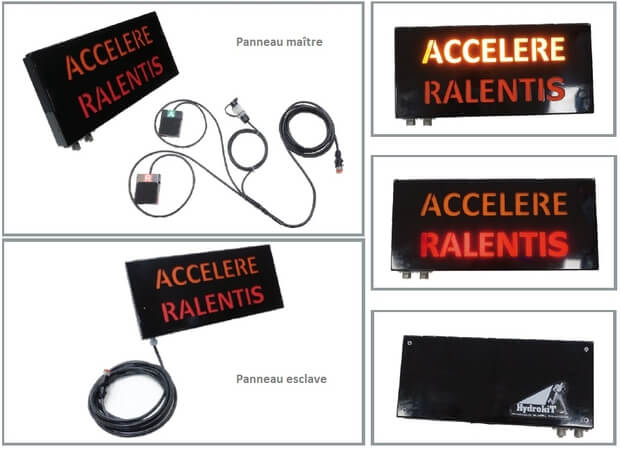

Composition and characteristics
The kit master panel includes:
-
A master panel luminous 220 x 490 mm thickness 50mm (variable dimensions)
-
A first pedal to act on the text ACCELERATE
-
A second pedal to act on the RALENTIS text
- An electrical kit with a 12 volt 3-pin socket
-
Detailed instructions
The kit panel slave includes :
-
One illuminated slave panel 220 x 490 mm, thickness 50 mm (variable dimensions)
- A 5m beam for connection to the master panel
-
Detailed instructions
Options :
-
Texts can be modified for the understanding of the users according to the construction sites.
-
Texts can be displayed in another language (English or German version)
-
Possibility of customising the colours and flashing speeds as required.

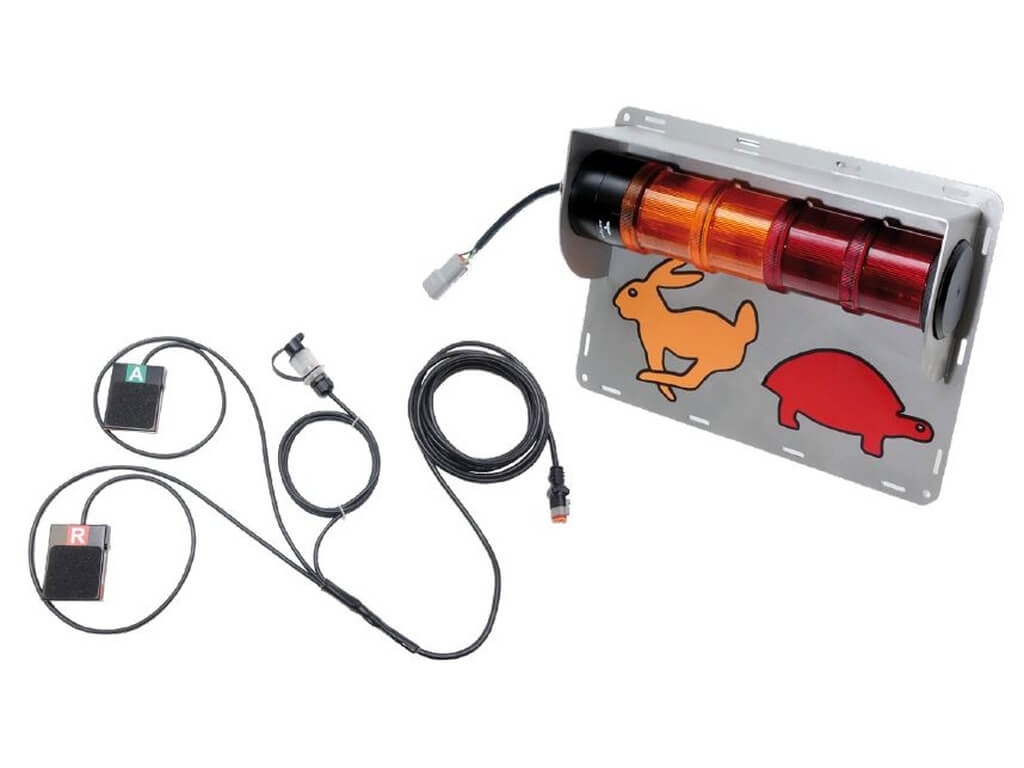

An economical version
The economic version has a simpler panel equipped with two lights (red and orange) and very comprehensible "Hare" and "Tortoise" pictograms. The electrical control, on the other hand, remains identical to the standard version.
- Panel dimensions: 350 x 250 x 50mm
- A first pedal A to act on the orange "Hare" lamp: rapid flashing
- A second pedal R to act on the red lamp Turtle': slow flashing
- A drill by function at the back of the panel to inform the driver of the self-propelled
