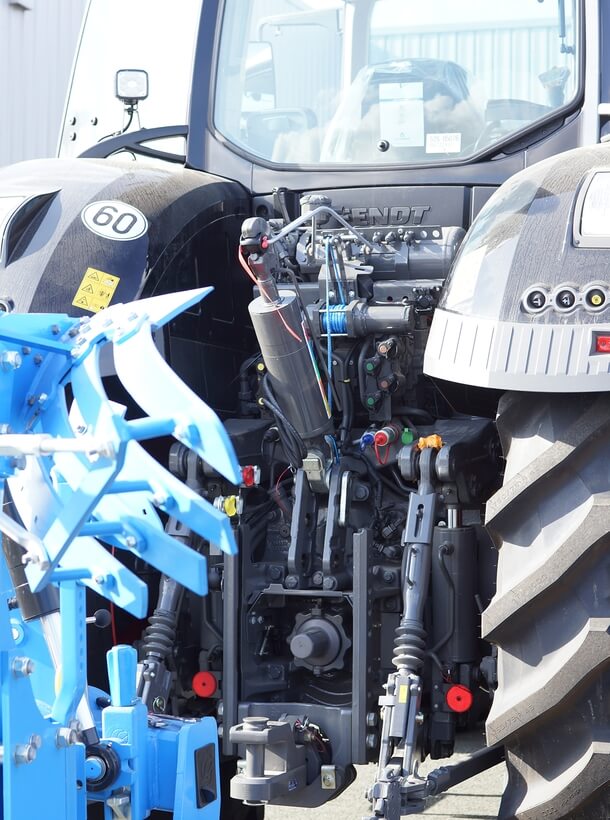

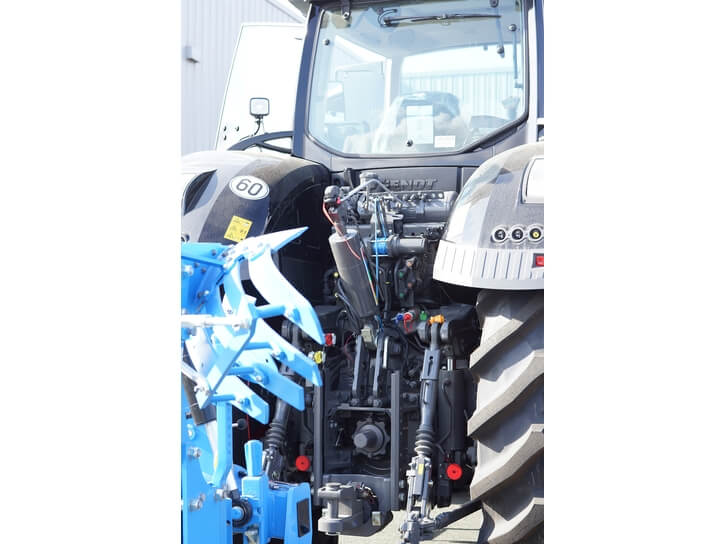

3rd hand kit for 3rd point
Hydraulic 3rd point and PTO shaft assistance on tractor
- More comfort, less effort: The kit keeps the third point in the desired position, in order to perform coupling / uncoupling manoeuvres.
- Safety: Avoid accidents - no more risk of crushing if the third point falls, comfortable position for the user.
- Clever: The third point storage bar remains in the upper position thanks to a spring system, makes manoeuvring easier.
- Easy to use : : easy to connect the power take-offs, the lifting effort becomes zero for the user.
- Practical: also allows the lower arms to be raised to fold them into a vertical position (cubic press drawbar application).
- Product awarded at the SIMA Innovation Awards
- Patented product
Attach your tools and power take-offs safely!
-
In support of third point
FORWARD
Risk of getting a hand crushed, if the push bar falls off during handling.
Back pain, as uncomfortable position and heavy load.
Inaccurate operation: you have to hold the push bar and operate the hydraulics at the same time.
No holding in high position of the hook arm.
AFTER

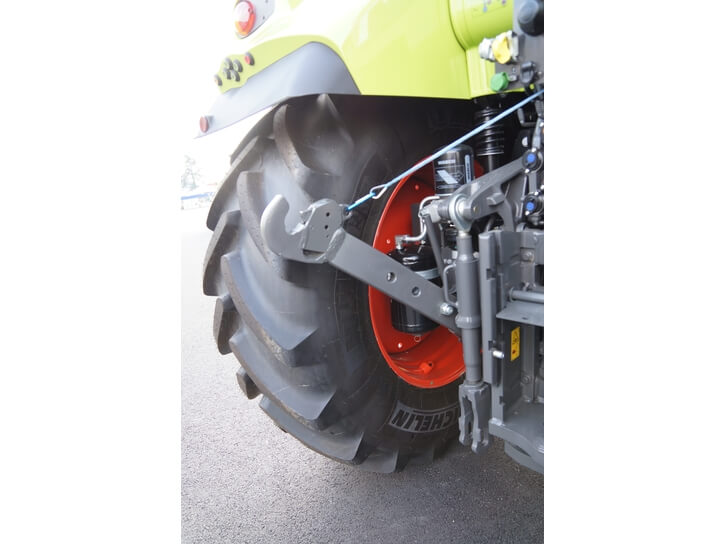

Hooking and unhooking the third point no longer requires the user's strength. He comes and fixes the carabiner of the 3rd hand kit on the third point attachment provided in the kit, and activates the raising or lowering of the latter with ease thanks to 2 buttons located nearby. All he has to do is attach or detach his tool and remove the carabiner and it's done.
-
In assistance for power take-off
FORWARD
Back pain, have to lift and line up at the same time
Round transmission protection difficult to hold
Perte de temps
AFTER
The user wraps the rope with the carabiner around the gimbal guard and activates the ascent/descent to the desired alignment.
Contents of the kit
-

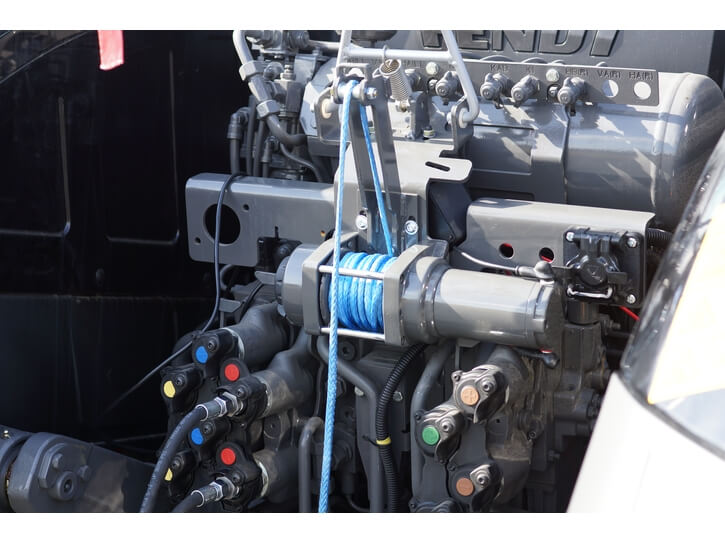

Electric winch with manual disengagement
-
Winch support
-
Mat support with pulley
-
Control switch holder
-
Bracket with clamp for mounting on push bar
-
Spring-loaded retention system for the storage bar
-
Electrical power and control box assembly
-
Screws and bolts
-
Assembly instructions
