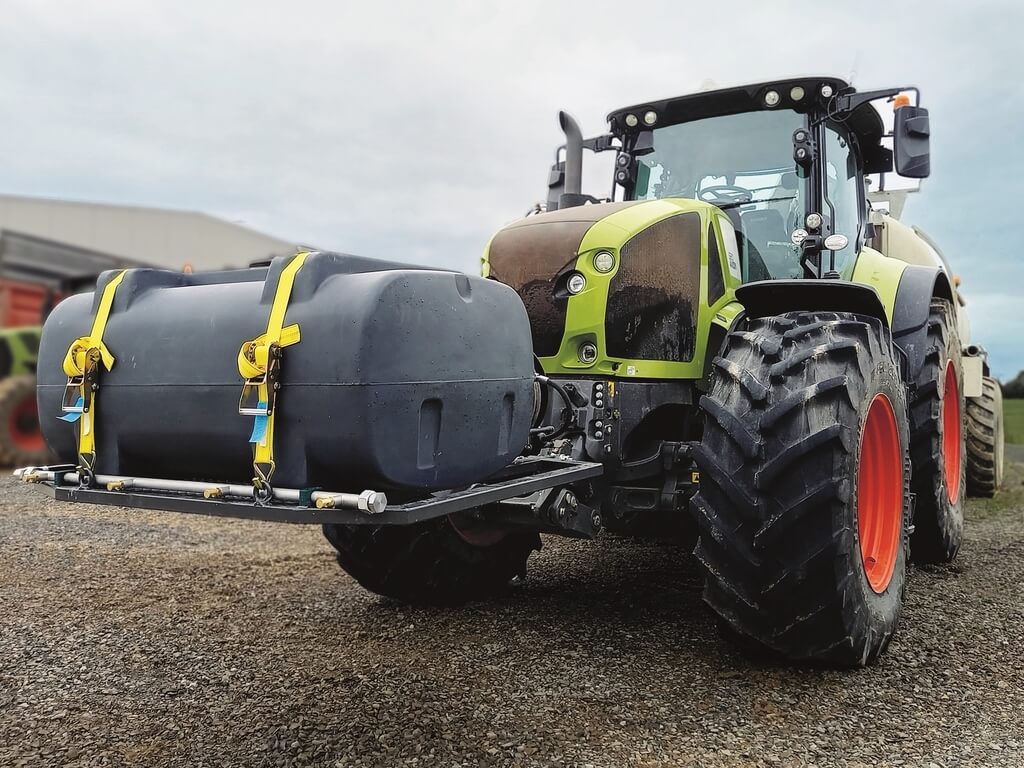

The integrated wheel cleaner
A self-contained and efficient cleaning system

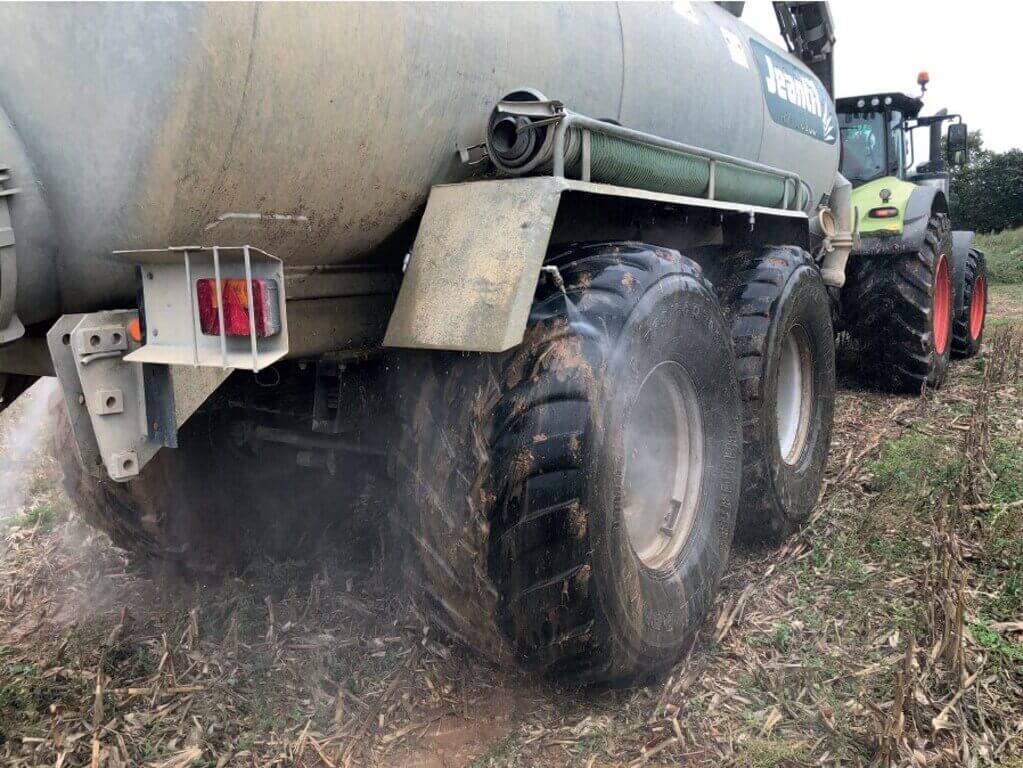

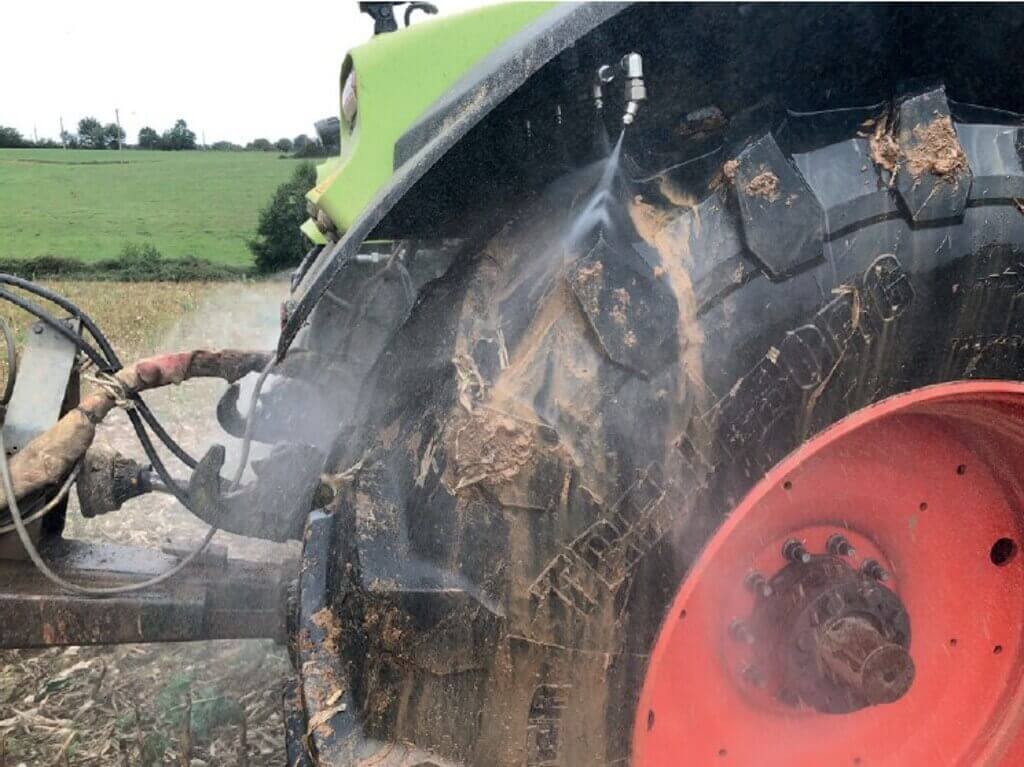

In order to improve the safety of equipment and users, Hydrokit has developed an innovative solution to clean the wheels of running equipment. This solution was selected at the SIMA Awards 2021, and was also awarded a "Sommet d'Or" at the Sommet de l'élevage 2021 The system sprays water under pressure, via the tractor's hydraulics, and applies it in localised jets to the tractor's wheels and those of the attached equipment. Automatic management of the system axle by axle allows for optimised cleaning while driving.
Three different uses are possible with this solution:
-
Automatic wheel cleaning while driving
-
Cleaning of the whole equipment with the hydro-sweeping lance
-
Extinguishing a fire outbreak
The aim is also to protect road users and users of the road by avoiding accidents due to a road deteriorated by soil or mud.

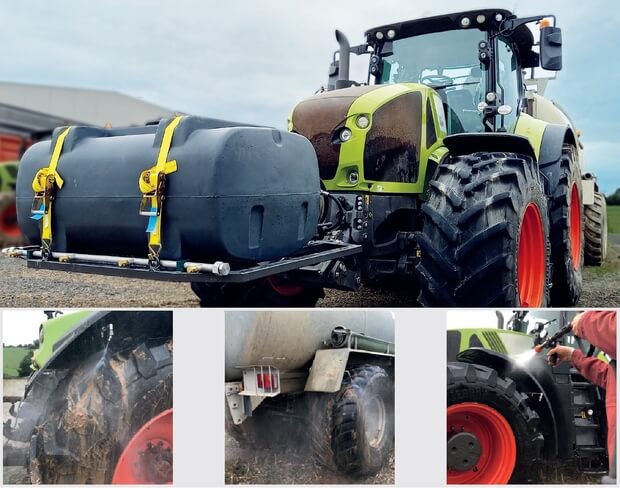

Benefits
1 - SAFETY: clean pavement -> less risk of accidents. Accident = driver responsibility.

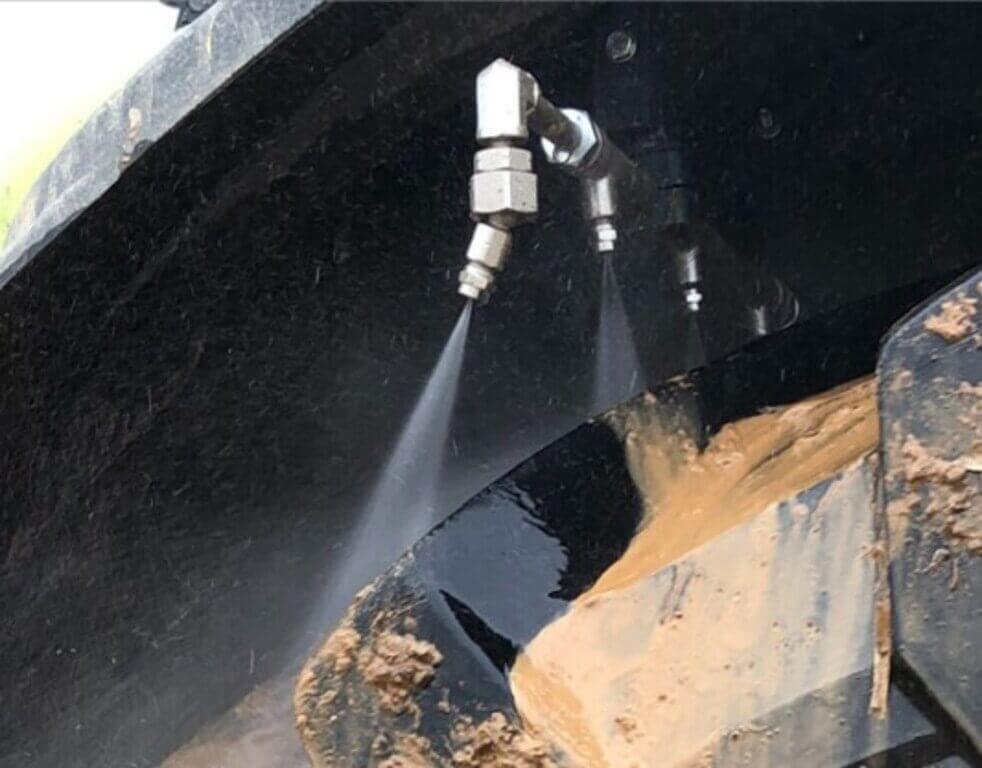

2 - DISCREET : nozzle holders are integrated under the mudguards.
3 - OPTIMIZED : axles cleaned separately. The cleaning will always be done at the same place in the field or exit from the field
4 - TIPS : a box manages the different axles according to the progress of the set.
5 - PRACTICAL : possibility to clean the set thanks to the included hose.

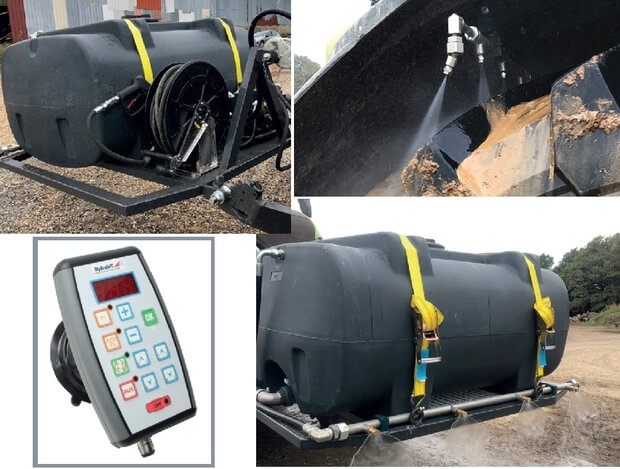

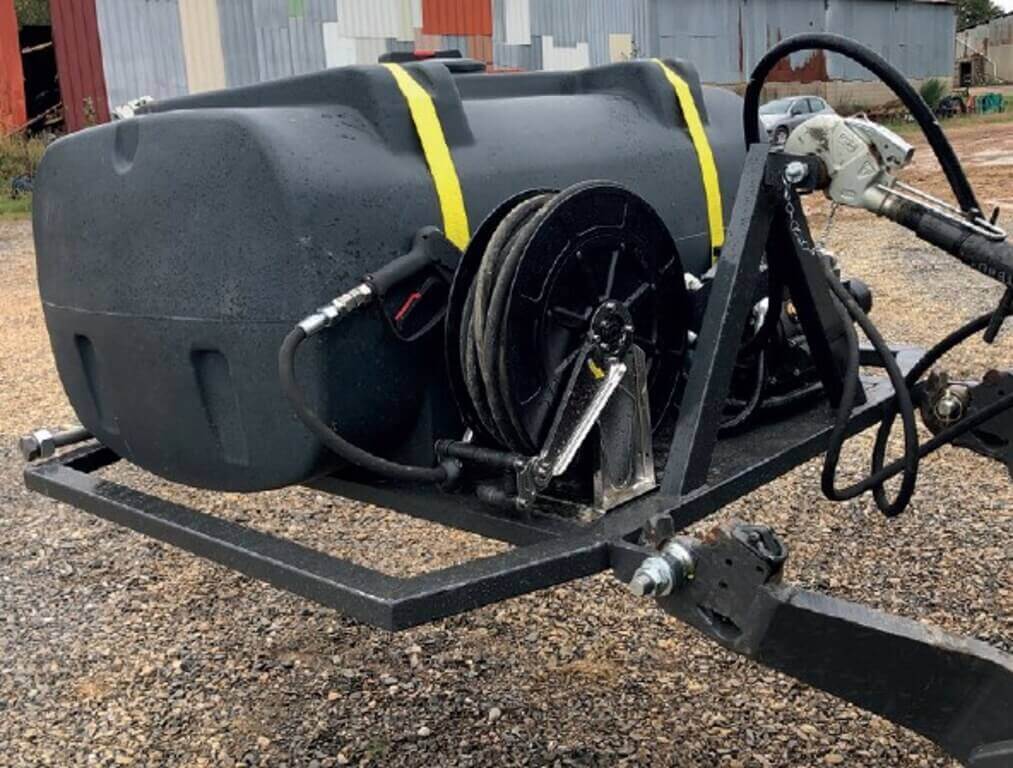

Composition and characteristics
Includes:
-
A tank
-
A block of solenoid valves (hydraulic flow rate required 44 L/min)
-
A set of connectors and adapted piping
-
An electronic control box
-
A water pump (50 L/min flow rate)
-
A reel with 20 m hose
-
A cleaning lance
-
Detailed instructions
Dimensions :
-
Width of the tank: 155 cm
-
Depth of the tank : 140 cm
-
Height of the tank : 75 cm
-
Tank volume : 600 litres
-
Empty weight: 220 kg
Options :
-
Ramp at the front of the tank (road cleaning or dust suppression)
-
Lighting
A solution that attracts the attention of the juries
Hydrokit's main mission is to find solutions to secure and improve the performance of equipment but also to save time and facilitate the work of farmers.
It is with this in mind that Hydrokit always submits entries to the SIMA Innovation Awards. The integrated wheel cleaner has been nominated for the 2021 edition.
Sima Innovation Awards press kit
Hydrokit is also among the winners of the 2021 Sommets d'Or in the machinery category with the wheel cleaner.
