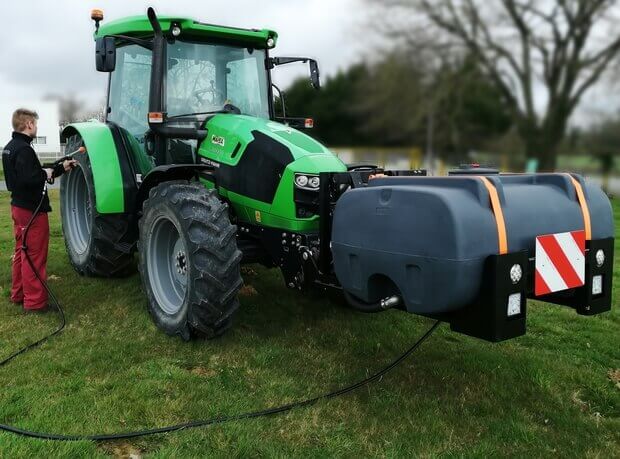

Fire extinguishing system
Control, Secure!
-
Safety: the kit stops the spread of the fire while waiting for help to arrive.
-
Practical: also allows you to clean the tractor as well as the attached implement.
-
Versatile: no PTO required hydraulically driven pump.
-
Clever: moistening for wrapping and silage.
Applications
Flow of water via tractor hydraulics and application by a water hose to a fire source.
The hydro-sweeping lance with 2 functions:
- 1 function sprayers for fire extinguishing, disinfection, dusting....
- 1 powerful straight jet function for cleaning
Other application:
Forage wetting: the tank allows wetting the swaths when the material is too dry via a front ramp.

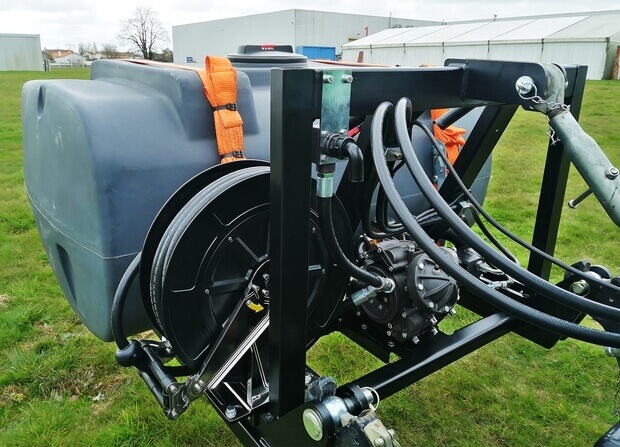

Composition of the kit
-
Cuve
-
Adapted connections and piping
-
Water pump
-
Hydro-sweeping lance
-
Reflective sign at the front
The advantages of the system
-

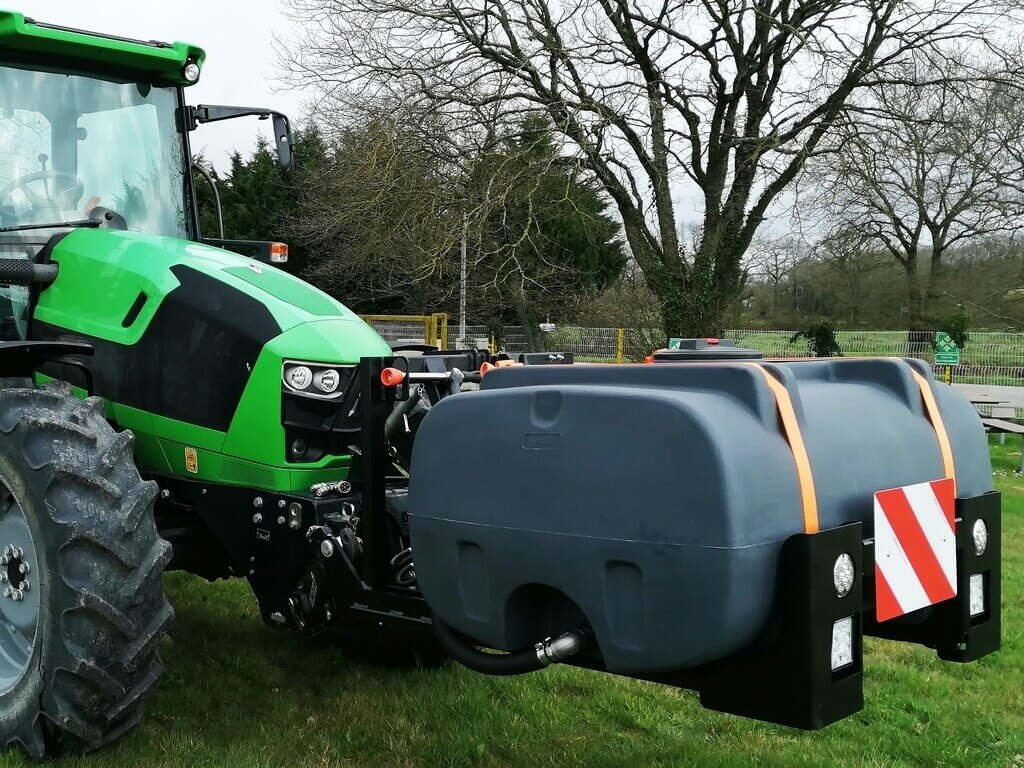

Easy to install: mounted on a tractor front 3-point linkage
-
Large capacity: 600 litre tank
-
Performance: self-priming pump
-
No PTO required: hydraulic pump drive
-
Lightweight: one-piece UV-treated polyethylene tank, resistant to
detergents and frost -
Practical: a manhole for filling
Technical specifications
- Empty weight: 220 kg
-
Width: 141 cm
-
Depth: 145 cm
-
Height: 81 cm
-
Tank volume: 600 litres
-
Water pump flow rate: 50 litres/min
-
Hydraulic motor feed rate: 27l/min
-
Hose length on reel: 18 m
Options
-
Wheel cleaner
-
Front ramp (pavement cleaning or spraying to avoid dust)
-
Automatic winder
-
Signal lights with LED position lights and indicators + 7-pin harness and plug
