Intermediate mobile hydraulic unit - GHVi

An autonomous hydraulic unit with a rear hitch!

In order to optimise the tools and to facilitate their use, Hydrokit has developed a self-contained hydraulic unit which can be attached to the rear of the tractor and which also has a rear coupling. Identical to that of the tractor, this 3-point linkage allows the attachment of the implement of your choice. Like the standard GHV range, the GHVi also provides an additional hydraulic source while keeping the original tractor functions available. The advantage: a considerable reduction in operating costs and productivity losses.

Areas of application

In general, applications require more and more hydraulic power and tractors often reach their limits very quickly. The GHVi can therefore fill the hydraulic gaps that a tractor may have when using implements attached to the front, side and/or rear of it.

The fields of application are therefore very varied, here are some examples:

Trimmer
Leaf stripper
Sweeper
Agricultural loader
Pile driver
Mechanical weeding
Soil preparation
Tine or disc interceptors
Mower
Turbine drive
...

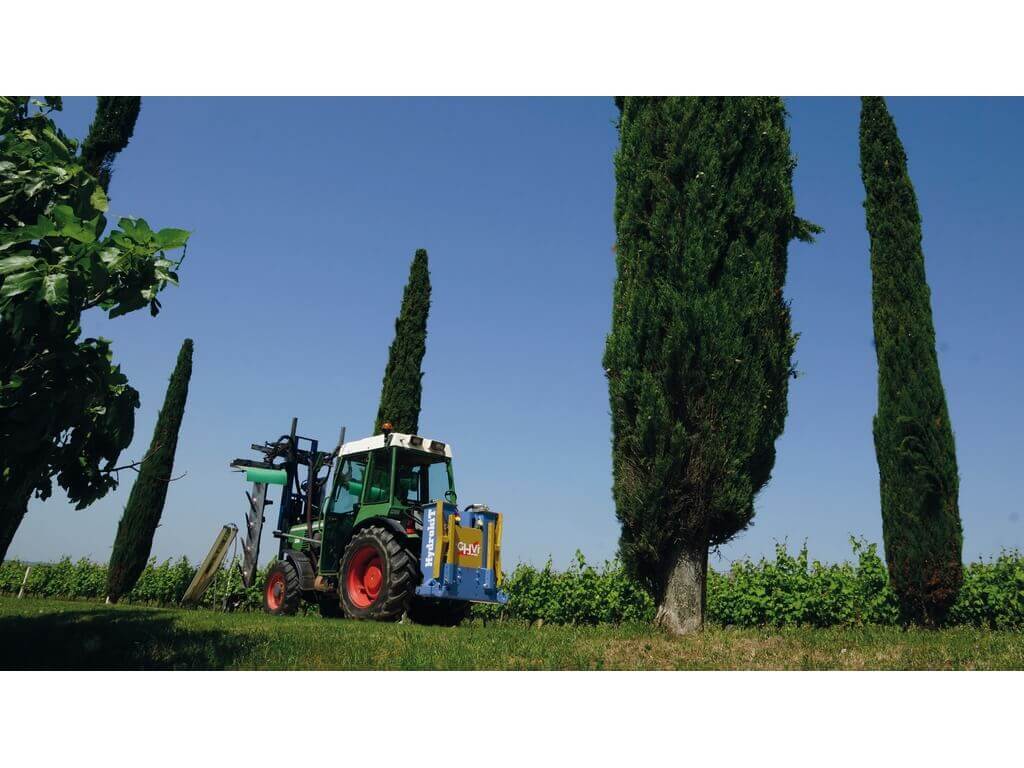

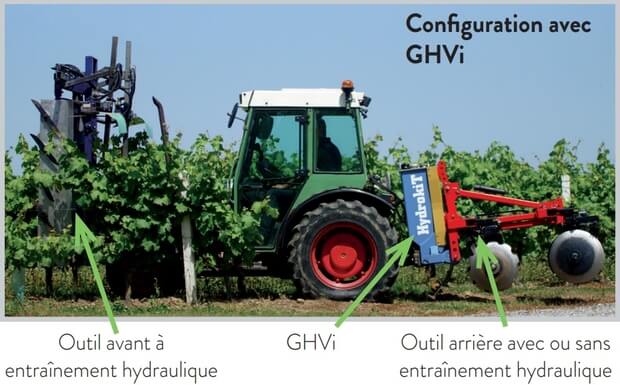

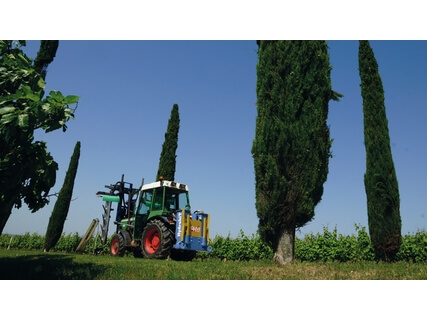

GHVI on tractor

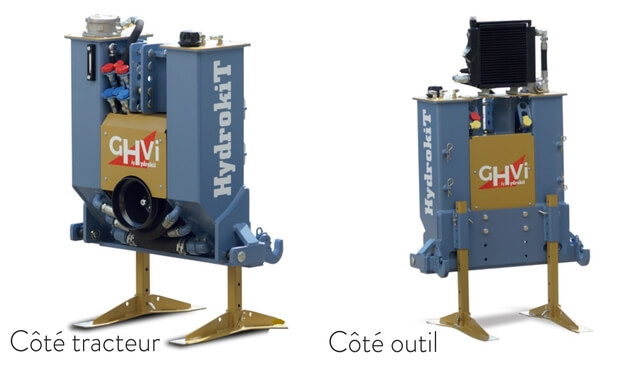

A patented product

A patented product

While retaining the characteristics of the standard GHV, the GHVi, with its load-bearing chassis, also incorporates a rear implement hitch. It is supplied with a pair of independent stands to facilitate the coupling/uncoupling phases. Its strong points :

  • More power: hydraulic source complementary to that of the tractor
  • Easy to set up: PTO drive and 3-point linkage
  • Modular: several configurations possible
  • Optimised work: thanks to its rear hitch

Technical information

Hitch :

  • Category 2 (front and rear)
  • Independent stands

Hydraulics :

  • Pump type: gear + multiplier (please consult us for piston)
  • From 1 to 3 pumps
  • Front and rear hydraulic outlets
  • Pressure limiter
  • Tank capacity: 75 litres
  • Semi-submerged return filter 120L/min
  • Up to 3 engine drain returns
  • 3 types of coolers available: 80, 110 and 160 L/min
  • Level and temperature indicator
  • Electrical box + fan management

Performance :

  • Maximum hydraulic power at 540 rpm: 27 kW
  • Maximum hydraulic power at 1000 rpm: 47 kW (depending on pump displacement)
  • Maximum flow rate at 180 bar and 540 rpm (one or more cumulative flows): 80L/min

Options :

  • Through PTO shaft
  • Electrically controlled by-pass flow divider
  • Electrical distribution (cetop 3 or 5)

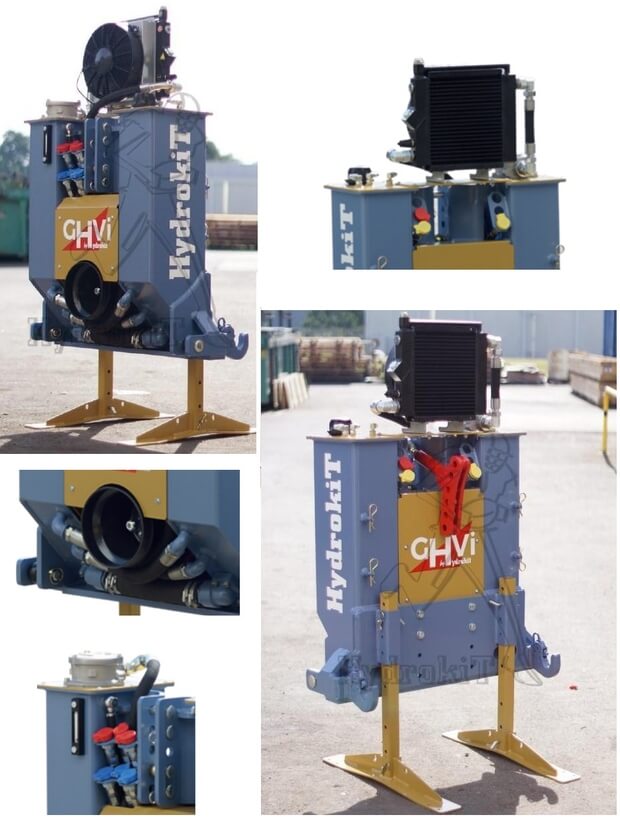

GHVI
