Mobile hydraulic units - GHV
Drive your tools hydraulically and independently!
To improve the working comfort of the users, Hydrokit has developed a range of independent hydraulic power units. Fixed on the tractor's 3-point linkage, it allows to provide a complementary hydraulic source while keeping the tractor's original functions available. Many configurations are possible according to the demand and the desired application.
Areas of application

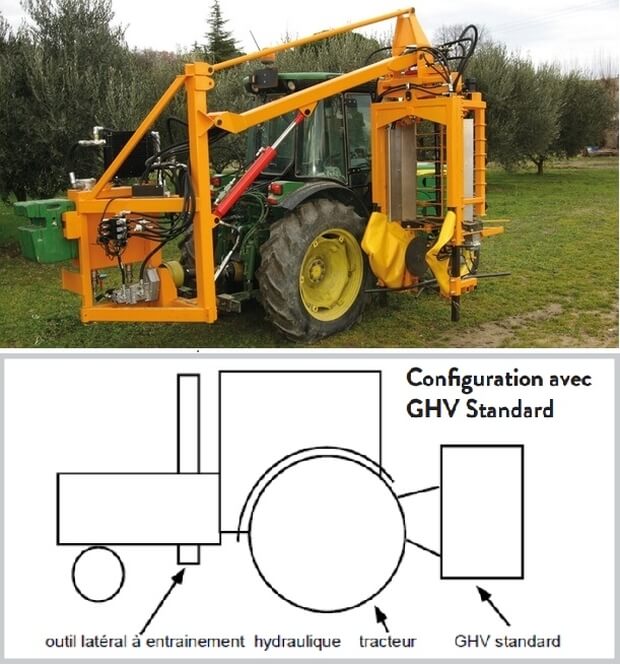

In general, applications require more and more hydraulic power and tractors often reach their limits very quickly. The GHV can therefore fill the hydraulic gaps that a tractor may have when using implements attached to the front, side and/or rear of it.
The fields of application are therefore very varied, here are some examples:
- Trimmer
- Leaf stripper
- Sweeper
- Agricultural loader
- Pile driver
- Mechanical weeding
- Soil preparation
- Tine or disc interceptors
- Mower
- Turbine drive
- ...

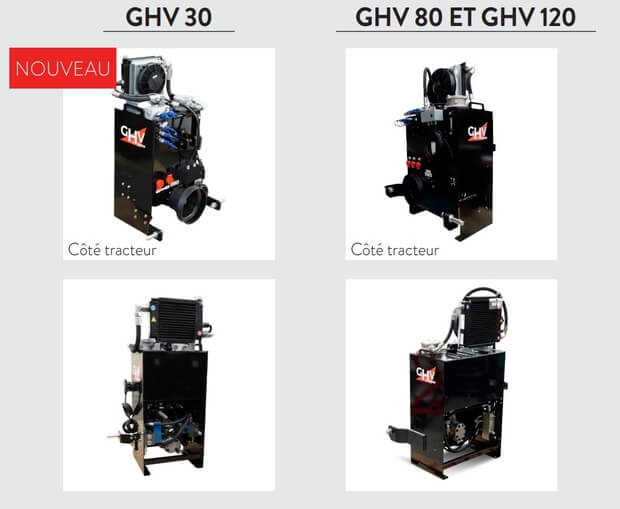

3 different versions
Our range is available in 3 standard versions, to suit all your needs:

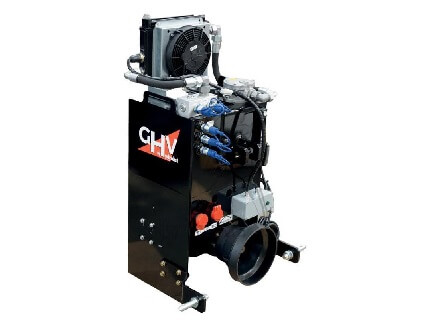

GHV30 range, ideal for park and garden vehicles with its 30 litre tank
GHV80 range, compact with its 80 litre tank

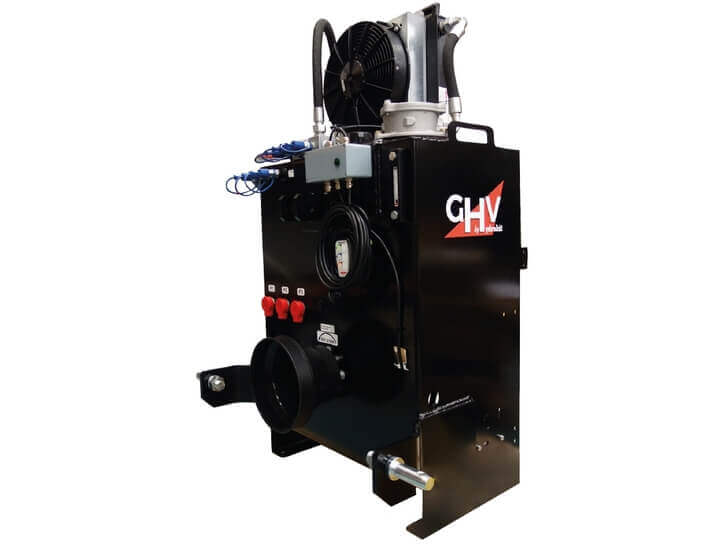

GHV120 range, powerful with its 120 litre tank

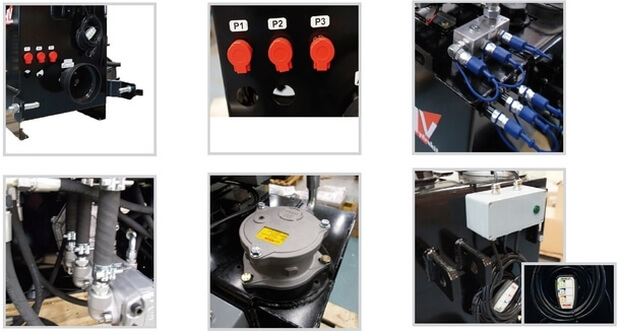

Several possible configurations
Driving :
- Category 2
Hydraulics :
- Pump type: gear + multiplier (please consult us for piston)
- From 1 to 3 pumps
- Front hydraulic outputs
- Pressure relief valve
- Tank capacity: 30-80-120 litres
- Semi-submerged return filter up to 160L/min
- Up to 3 engine drain returns
- 3 types of coolers available: 80, 110 and 160 L/min
- Level and temperature indicator
- Electrical box + fan management
Options :
-
Electrically controlled by-pass flow divider
-
Manual or electrical distribution (cetop 3 or 5)
Dimensions GHV 30
Dimensions GHV 80
Dimensions GHV 120
