Open side panel safety kit
A complete range of kits to comply with the decree "JORF N°0172 of 14 July 2020 text N°80".
From January 2021, new standards will be in force regarding the safety of the opening of the sideboards on trucks equipped with hydraulic sideboards.
Hydrokit offers a range of kits to install on your new and retrofit trucks to bring you into compliance.
Benefits
1 - LEGISLATIVE :
Inspected by the APAVE in application of the NF R17-109 standard
2 - RAPIDITY :
Fully wired, ready to install (Approximately 3 to 6 hours assembly time depending on version)
3 - ADAPTABLE :
The kit is suitable for most 6x4 and 8x4 trucks on the market
4 - VIEWABLE :
Case with a specific and customisable silk-screen print
Composition of the kit

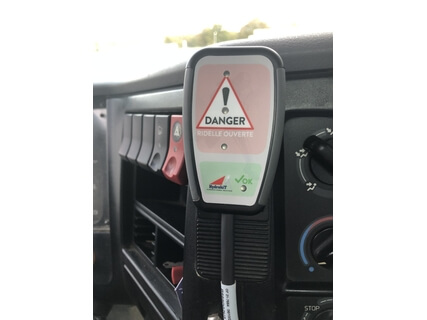

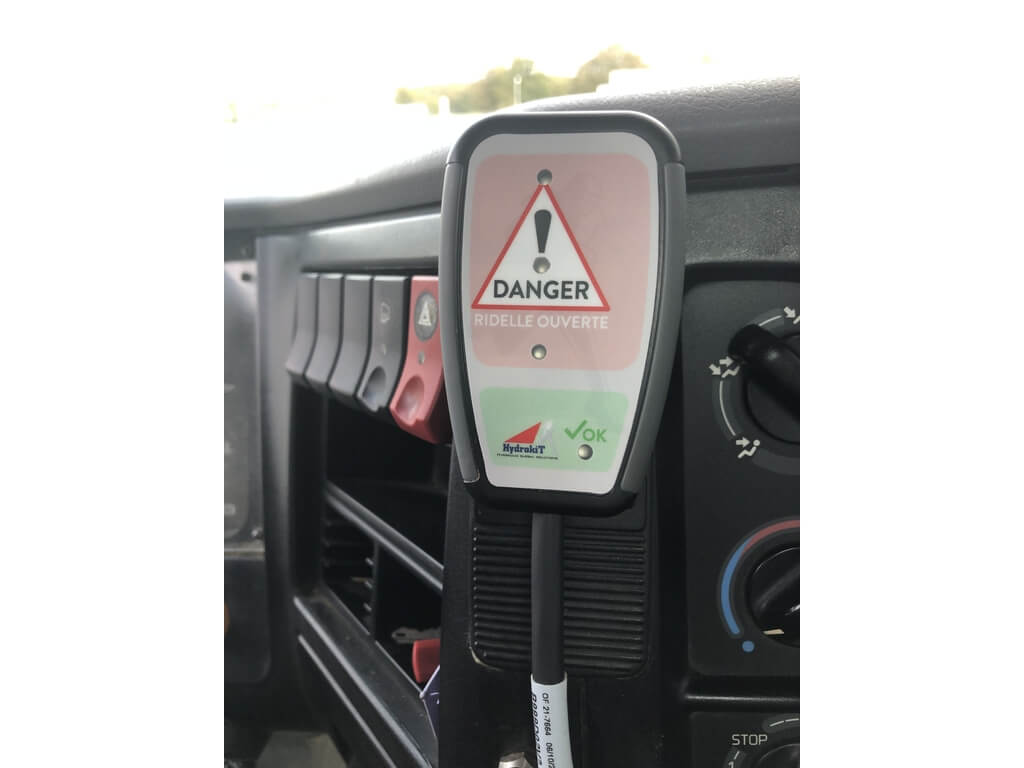

- In-cab display box and mounting bracket FIXBOX
- Power harness (5m)
- G&D Sidewall Information Harness (17m), Hydraulic (10m) and Speed (8m) depending on option(s) chosen)

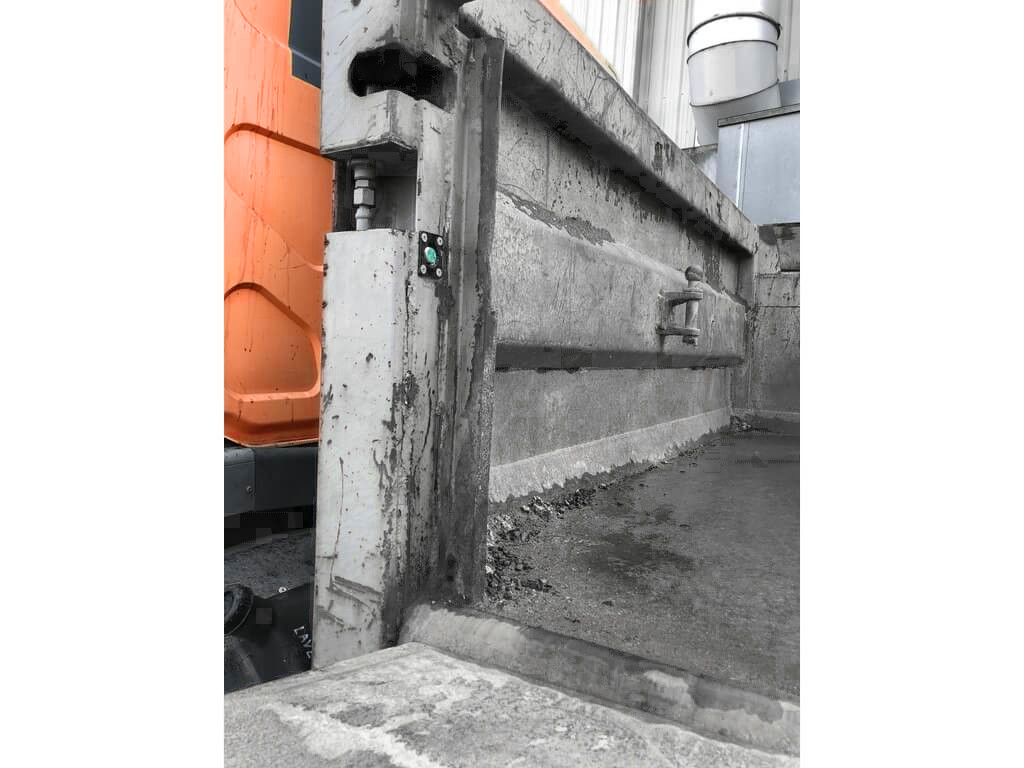

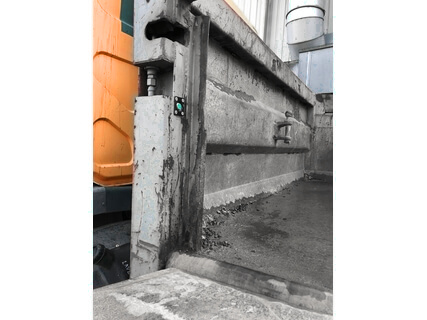

- Sidewall(s) information = One or Two Inductive sensors (nominal range 0...8mm) and their mounting brackets

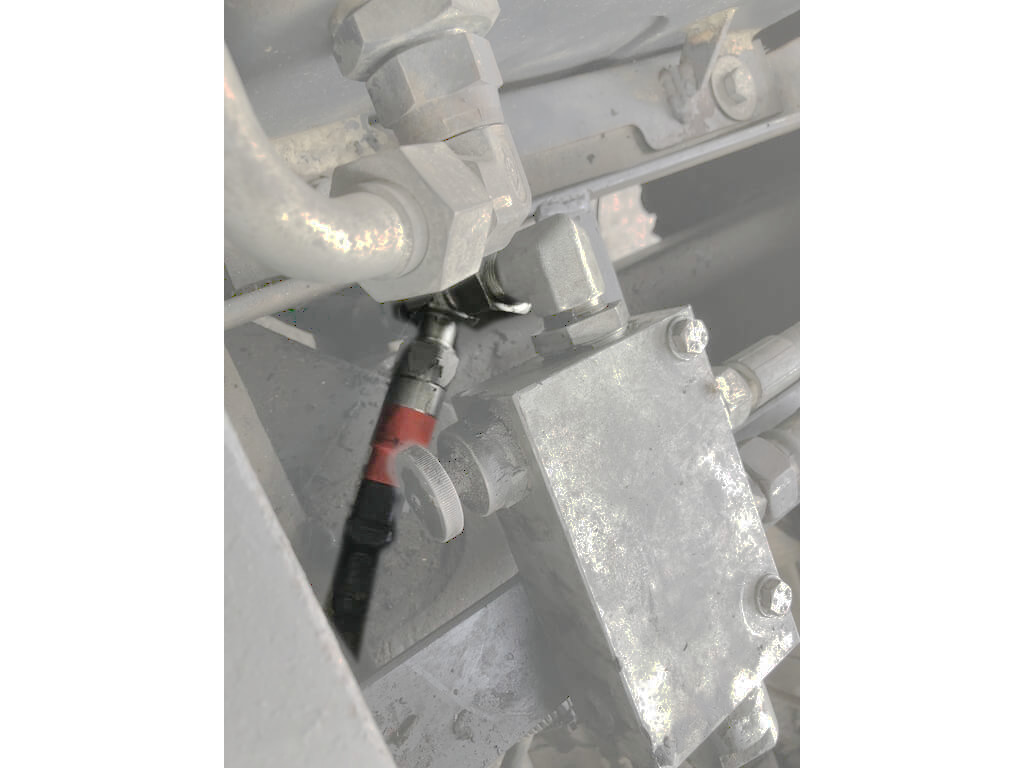

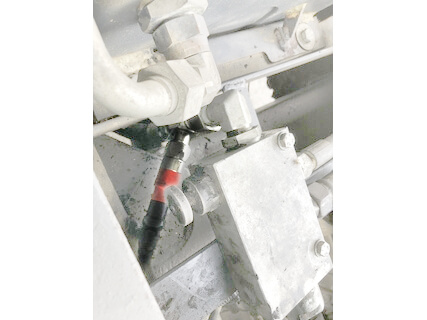

- Hydraulic Information (for equipped kits) = Pressure Sensor (5bars threshold)
- Speed information (for equipped kits) = Wire output (+/-) "Open sideboard" signal
- Protective split corrugated sheath (10m)
- Detailed instructions
- CE declaration of conformity

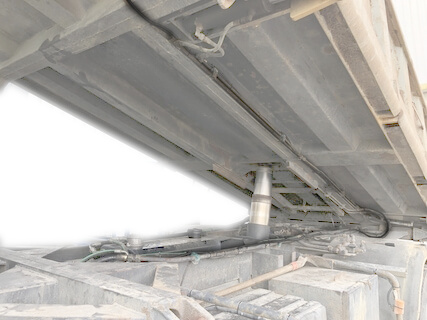

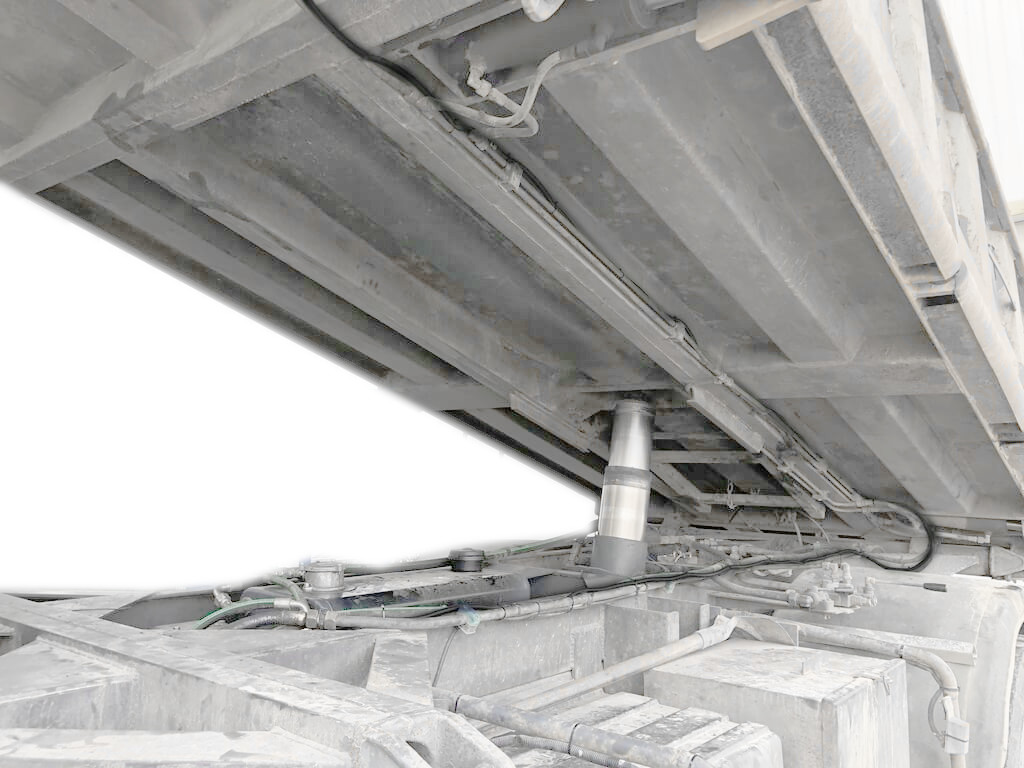

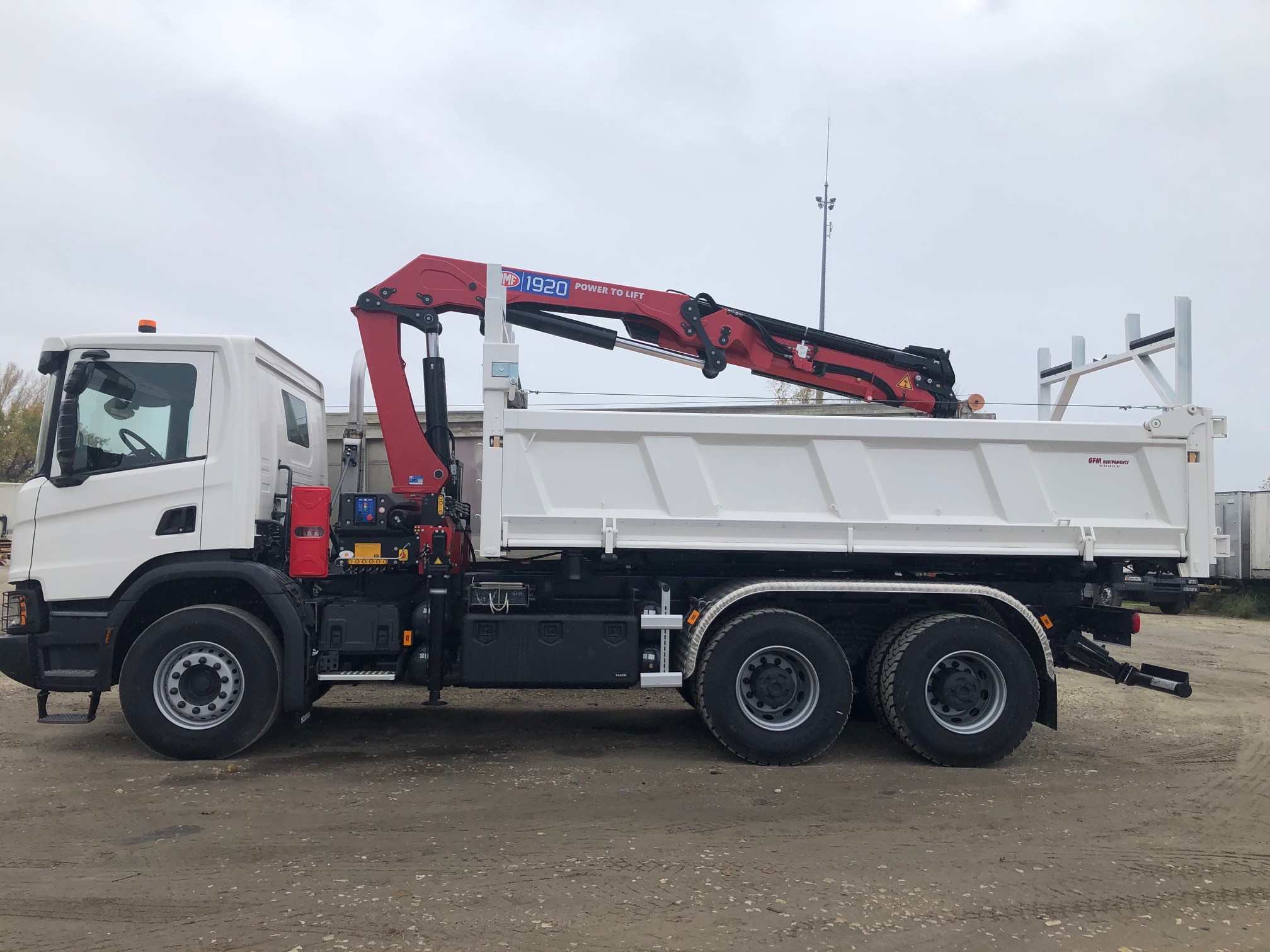

Example photo with a full option kit
