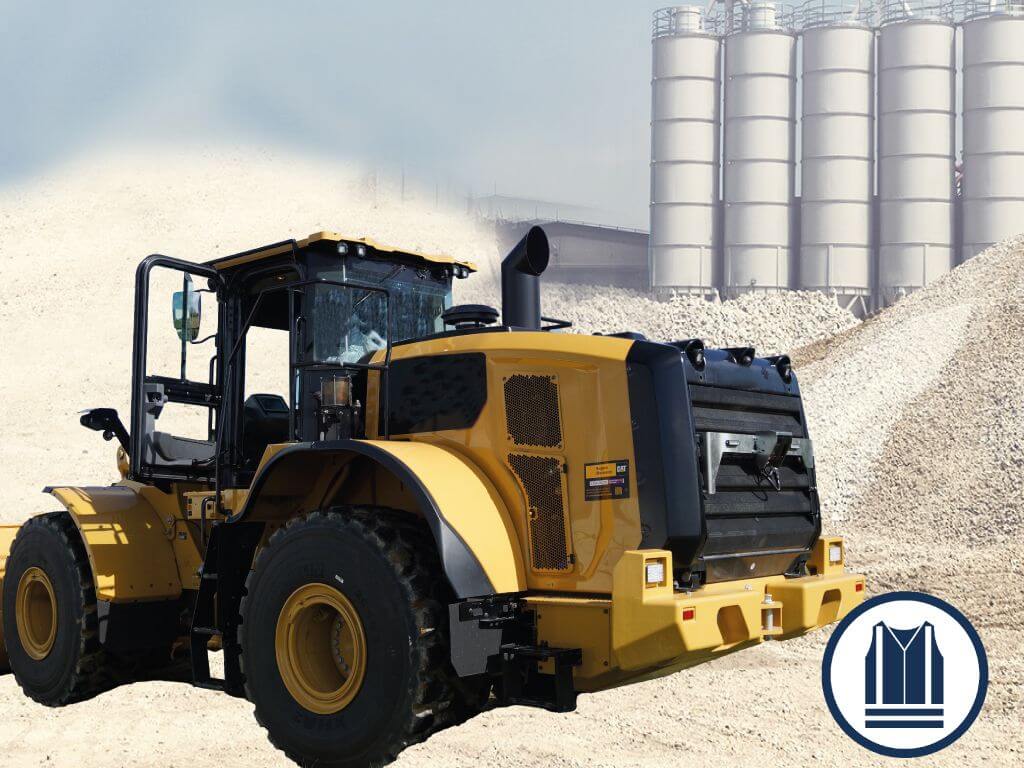

Detection of reflective strips
Drive safely on your construction sites
-
Security : Detects pedestrians wearing yellow waistcoats.
- Efficiency : Allows you to warn pedestrians and the driver of mobile machinery in your movement area.
- Customizable : The detection zones are all configurable, as are the warning tools (flashing beacon, flash lights, loudspeakers).
- Extreme conditions : Day and night operation, self-diagnosis of sensor efficiency (dust, mud, fog, rain).
The reflective tape detection system was nominated at the Grands Prix Matériels Chantiers de France and DLR in the small equipment and tools category.

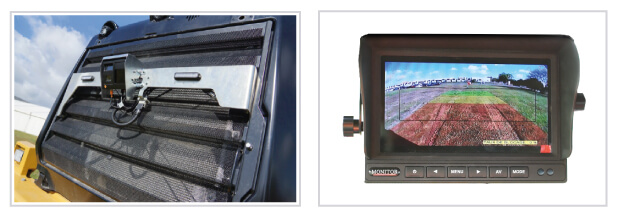

Specifications
- IFM camera
- Display: 7" IP54
- Detection angle: 95° x 32°.
- Detection zone :
Reflective : >25m (max sensor 80m)
Objects: >8m (max. sensor 50m) - Protection class IP69K
- Operating temperature -40 to +85°C
- Supply voltage: 9-32V DC
- Case dimensions: 220 x 175 x 95mm
Benefits
We offer you a tailor-made kit :
-

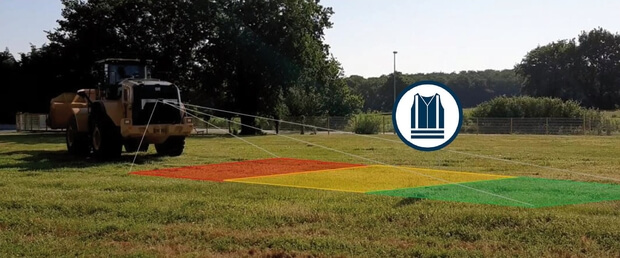

Customise the different detection zones (Definition of 1 to 3 zones)
-
Install multiple systems on one machine (at the rear, at the front, on the sides depending on the areas to be covered, or possibility of adding a second one at the rear to develop an additional detection area)
-
Choose different alert tools (flashing lights, flashing lights, loudspeakers)
