Anti-theft / Immobilizer
Secure and protect your machines
- A single box for 12 or 24 VDC
- Reliable with micro-cut protection
- Easy to install with the reduced size control box (50x57x24mm)
- Reduced consumption with configurable standby
- Compliance with THATCHAM standards with the temporary blocking function of the system after 3 invalid codes

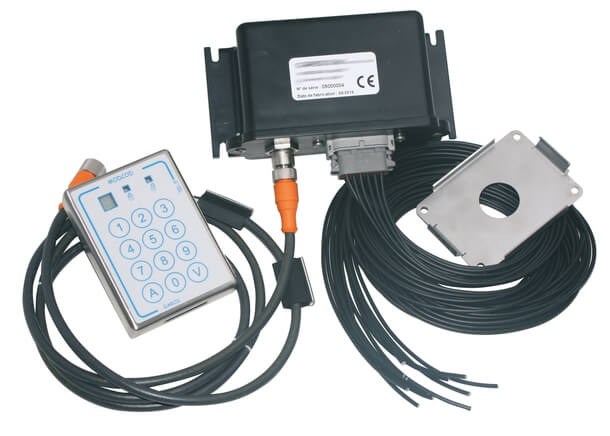

Code system
Main box : Dimensions: 70x150 mm thickness 50 mm
Keyboard
-
Operation identical to MODCOD50 1st generation.
-
Stainless steel box, surface mounting without visible screws.
-
Dimensions: 67x92 mm thickness 18 mm
-
Code 4 to 6 digits (configurable) > 1 master code > 1 workshop or driver code > 9 user codes > 1 7-segment LED display (display of user number, error code, etc.).
-
Coded immobilizer system with immobilizer + anti-theft relay + surface mounting - DEUTSCH connector

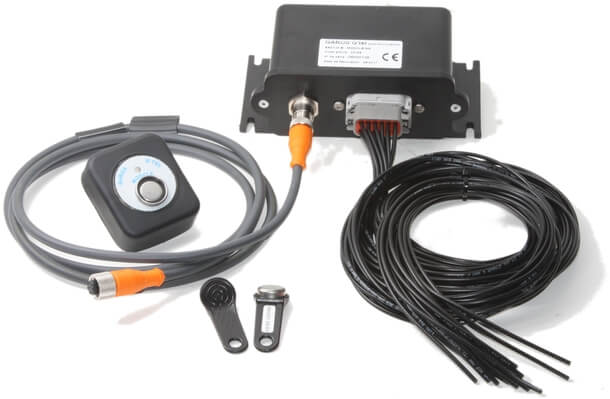

Key system
Main box: Dimensions: 70x150 mm thickness 50 mm
key reader
-
Dimensions: 50x57mm, thickness 24mm
-
Stainless steel reader, plastic case.
-
IP65 sealing
-
Surface installation without visible screws
Features
- Micro-cut protection with power backup for 100 milliseconds
- 2 main breaks 7.5 A double contact
- 2 additional configurable breaks: 2 breaks 7.5 A, or 1 break 15 A, or 1 break 7.5 A with 1 contact output 7.5 A (NO or NC).
- ECO mode: < 2 mA after a configurable period of time from 0 to 100 hours (by default 72h).
- M12 type connection cable to be screwed between the keyboard and the electronic box, length 1.5 m.
- Machine connection by Deutsch IP65 DTM series 12-pin plug.
- Machine harness 1.5 m long 12 black wires of the same section 1 mm² without numbering.
