Hydraulic distribution with snow plough control unit
- Floating position
- Control from the cab
- Simplicity of assembly
Applications
-

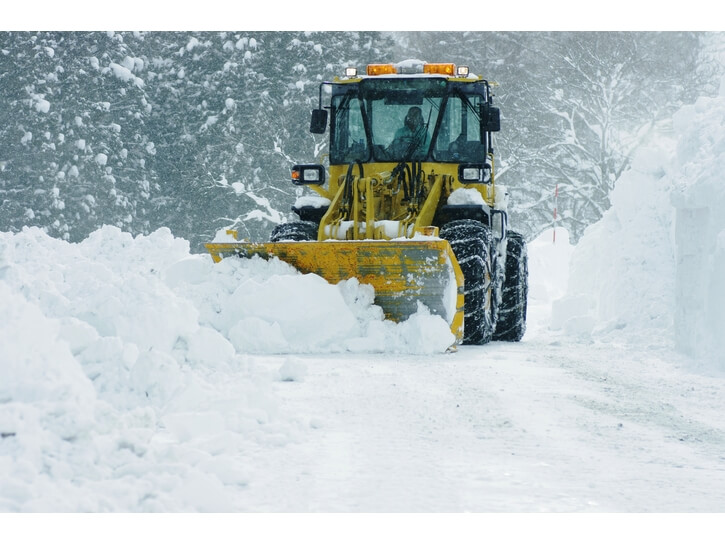

Snow plough
-
Sweeper
-
Brushcutter
-
Any device requiring a floating position
Contact us
-
-
+33 (0) 251 344 528Contact ContactCloseLooking for an immediate reply?Contact us on +33 (0) 251 344 528
Standard version
Composition
- Subbases and spool valves
- Specific solenoid valve for floating position
- Control box
Version with proportional electrical distribution
Content
- Proportional hydraulic block
- Specific hydraulic block for floating position
- Optional control box: reference: BPVG2P1FLO
Version with central unit
Composition
- Power station with distribution
- Control box
- Engine protection cover

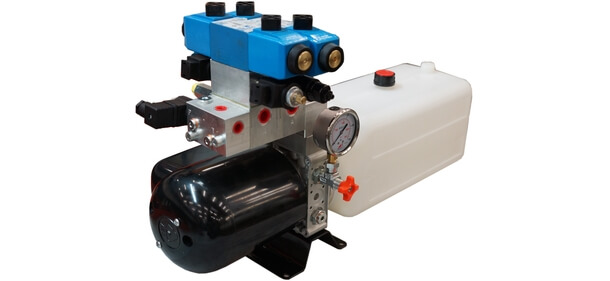

Version with central unit and load shedding function
Adjust the weight of the blade on the ground to avoid damaging the road.
Related Products
Additional info
40 L/min 12 V DC 2 functions SA/DA
including a float / on /off control
with in cab control box compatible
open centre / carry over. Composition:
• Base block and electro-valves 12V
DC • option float position on one function
•
including a float / on /off control
with in cab control box compatible
open centre / carry over. Composition:
• Base block and electro-valves 12V
DC • option float position on one function
•
Distributor kit + blade case 12 V 2
DH240LNV1
To check price
Additional info
KIT DIRECTIONAL VALVES + REMOTE CONTROL BOX SNOW PLOUGH
Max. flow rate: 40lpm
3 functions SA/DA + 1 float on / off position
Controlled from the cab
Suitable for opened centre and carry over hydraulics circuit
Packaging:
- Base and electro-distributors 12VCC
- Optional float position function
- Wired control box with small switches - 7.5m cable
Max. flow rate: 40lpm
3 functions SA/DA + 1 float on / off position
Controlled from the cab
Suitable for opened centre and carry over hydraulics circuit
Packaging:
- Base and electro-distributors 12VCC
- Optional float position function
- Wired control box with small switches - 7.5m cable
DIRECTIONNAL VALVES KIT + REMOTE CONTROL
DH340LNV1
To check price
Additional info
40 L/min 12 V DC 3 functions SA/DA
including a float / on /off control
with in cab control box compatible
open centre / carry over. Composition:
• Base block and electro-valves 12V
DC • option float position on one function
•
including a float / on /off control
with in cab control box compatible
open centre / carry over. Composition:
• Base block and electro-valves 12V
DC • option float position on one function
•
DISTRIBUTOR KIT + REMOTE CONTROL
DH340LNV2
To check price
Additional info
40 L/min 24 vdc 3 functions SA/DA including
one with float / all on / off functions
with in cab control box compatible
with open centre / carry over. Composition:
• Base and electro-valves 24 vdc •
option float position on one function
•
one with float / all on / off functions
with in cab control box compatible
with open centre / carry over. Composition:
• Base and electro-valves 24 vdc •
option float position on one function
•
Distributor kit + blade case 24 v 3
DH340LNV2B
To check price
Additional info
PVG KIT OC 2 PROP + 1 FLOAT 12 v dc
PVG kit open circuit 2 functions in
KLN2P1FCO01
To check price
Additional info
PVG KIT CC 2 PROP + 1 FLOAT 12 v dc
PVG kit closed circuit and LS 2 fun
KLN2P1FCF1
To check price
Additional info
PVG KIT OPEN CENTRE
3 PROPORTIONAL + 1 FLOAT 12V DC
3 PROPORTIONAL + 1 FLOAT 12V DC
PVG KIT 3 FUNCTIONS OPEN CENTRE
KLN3P1FCO01
To check price
Additional info
PVG KIT CC 3 PROP + 1 FLOAT 12 v dc
PVG kit closed circuit and LS 3 fun
KLN3P1FCF01
To check price
Additional info
Electric control hydraulic distribution kit
2 on/off double-acting functions, one of which is floating
All or nothing control with box in cabin
Open centre
Composition :
• Base block without pressure limiter
• 2 x 12 Vdc solenoid valves, one of which has float.
• A wired box with Joystick - 7.5m cable
Maximum flow: 40 l/min
Max pressure 200 Bar
Pressure and return ports in 1/2" BSP
Port A and B in 3/8" BSP
2 on/off double-acting functions, one of which is floating
All or nothing control with box in cabin
Open centre
Composition :
• Base block without pressure limiter
• 2 x 12 Vdc solenoid valves, one of which has float.
• A wired box with Joystick - 7.5m cable
Maximum flow: 40 l/min
Max pressure 200 Bar
Pressure and return ports in 1/2" BSP
Port A and B in 3/8" BSP
SNOW PLOUGH KIT 40L 2 FCTS 1 FLOAT
DH240LNV2
To check price
Additional info
DISTR LAME NEIGE 40L 3 FCTS CO 24V
DH340LNV1B
To check price
Additional info
40 L/min 12 vdc + pressure relief 4
functions SA/DA including a float.
Small switches Composition: • Base
and electro-valves. • Specific electro-valves
for float position. • Control box with
loom.
functions SA/DA including a float.
Small switches Composition: • Base
and electro-valves. • Specific electro-valves
for float position. • Control box with
loom.
Distributor kit + blade case 12 V 4
DH440LNV1
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
Central snow blade 12 V 1 floating
GH11LN121SEFC
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
POWERPACK FOR SNOW BLADE 24V
GH11LN241SEFC
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
Central snow blade 12 V 1 floating
GH11LN12D
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
Central snow blade 24 V 1 floating
GH11LN24D
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
Central snow blade 12 V 2 double-ac
GH11LN12AD
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
Central snow blade 24 V 2 double-ac
GH11LN24AD
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
Central snow blade 12 V 3 double-ac
GH11LN12A2D
To check price
Additional info
Composition • Power unit with valve.
• Control box. • Motor protection cover.
• Control box. • Motor protection cover.
Central snow blade 24 V 3 double-ac
GH11LN24A2D
To check price
Additional info
DISTR LAME NEIGE 40L 4 FCTS CO 24V
DH440LNV2
To check price
Additional info
DISTR LAME NEIGE 40L 4 FCTS CO 24V
DH440LNV2SB
To check price
