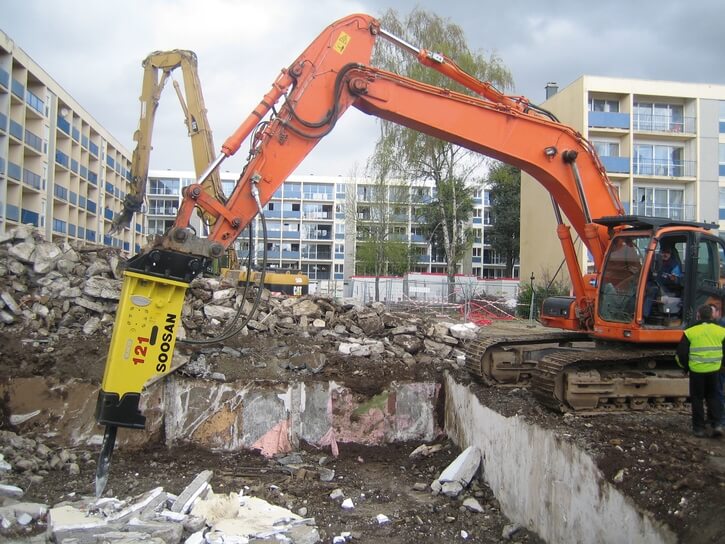

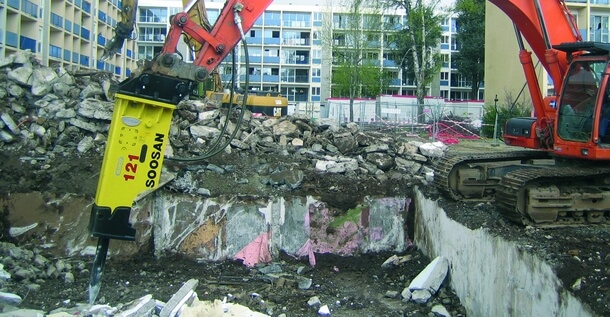

Basic high pressure line for one tool
For powering hammer-hammer lines (single-acting) or high-speed double-acting lines (clamp opening/closing, shears, crusher)
The kit includes
-
Control system (electric or hydraulic)
-
Distribution adapted to the machine circuit
-
Complete line (rigid tube, hoses, fittings, clamps)
-
Valves and/or couplers
-
Return filter
-
Assembly instructions

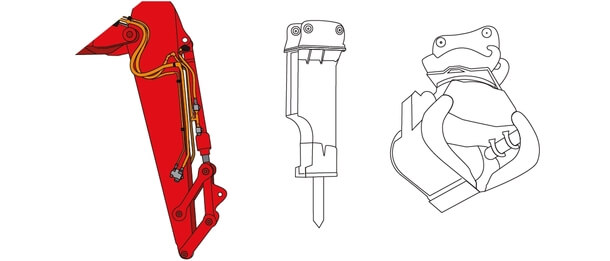

Multifunctional high pressure line for several tools

For feeding hammer-hammer lines (single-acting) and high-speed double-acting lines (pliers): use the same line for hammer and pliers.
Technical specifications
-
Control by electric pedal, hydraulic pedal, proportional knob
-
Single/double acting conversion with mechanical or electrical control
-
Possibility of setting several pressure flow thresholds
-
Electrically or mechanically operated

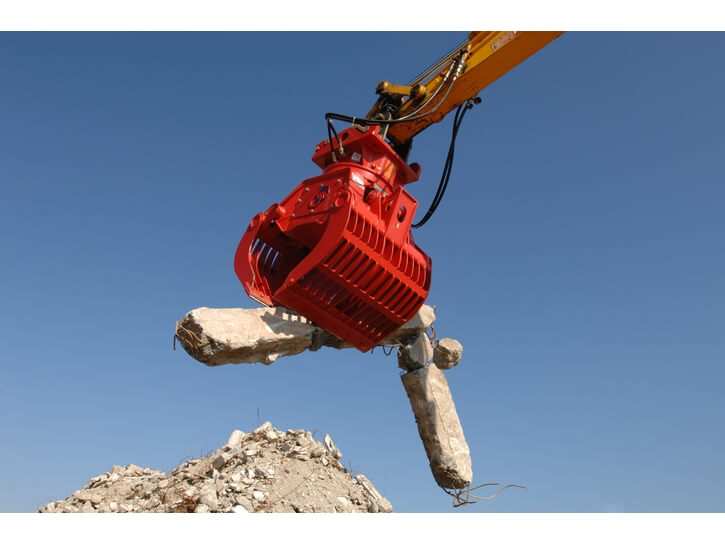

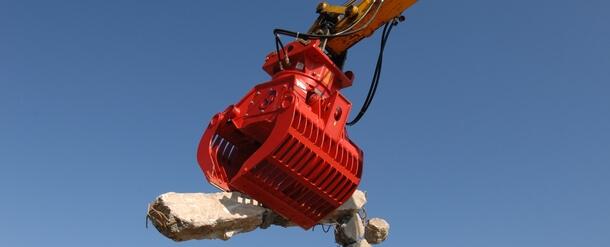

Low speed line
For low flow dual effect feeding: clamp rotation, shear, bucket tilt, rotator feeding.
Technical specifications
-
Installation with independent or integrated pump on the main circuit of the machine
-
Control by hydraulic pedal, switch or joystick with proportional knob

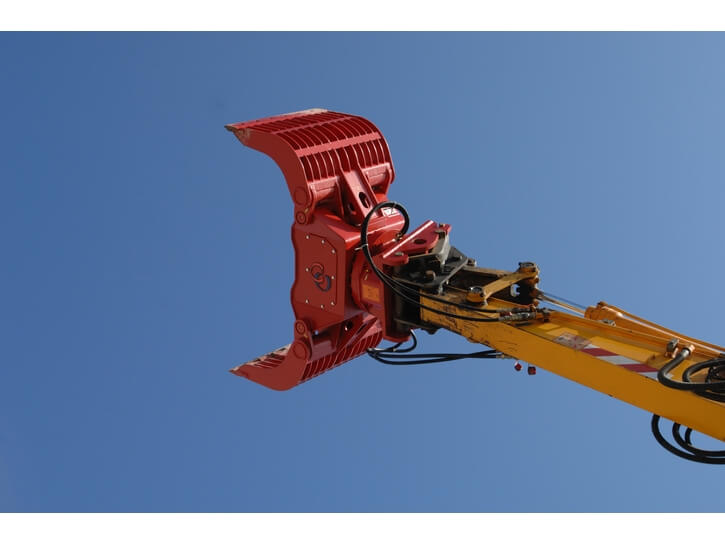

Backhaul line

For feeding pendulum tools without additional line.
Technical specifications
-
Quarter-turn valve on the rocker arm or flanged to the cylinder, depending on the machine

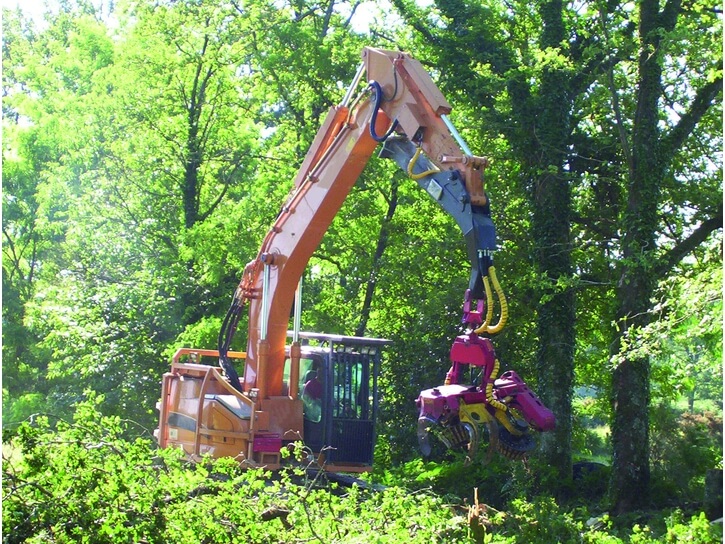

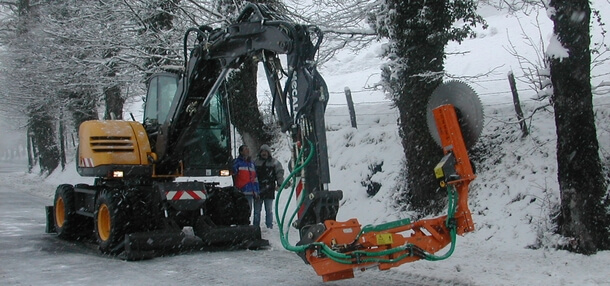

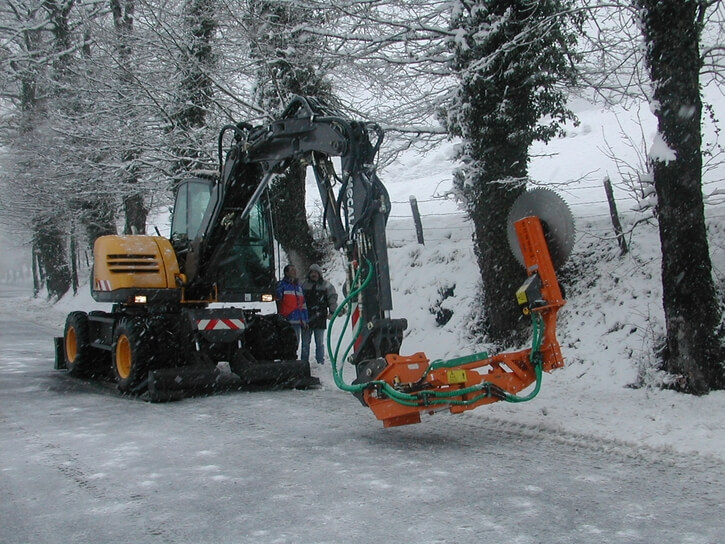

Priority fixed flow regulated line
For feeding a tool (crusher, cutter, milling machine, generator) with a fixed flow rate that has priority over the other functions of the machine (no flow rate variation).
-
No matter how the machine moves, the tool will always have a priority and regulated flow
-
The tool always runs at the same speed.
-
Maintains the homogeneity of the machine's other movements (straight translation, boom / bucket / dipper synchronisation, etc.).
The kit includes:
- Steering kit adapted to the tool.
- Single or double low pressure flow divider depending on machine.
- Hoses and connectors.
- Full line if necessary.

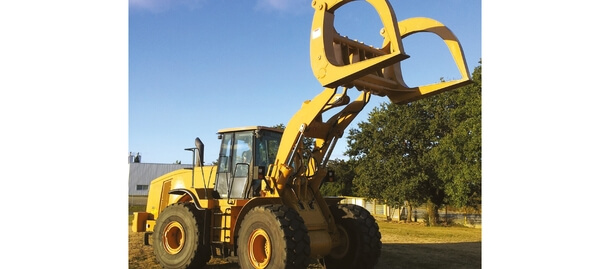

Loader line

For feeding a high-dump bucket, a snow plough or a snow thrower...
Technical specifications
-
With original section or addition of a distributor
-
Control on original or separate joystick
