Hydrokit

Weighing

  1. To view real-time load and cumulative loads carried
  2. Simple and economical for load indication
  3. Cumulative and tare, shown on screen in large size
  4. Overload warning

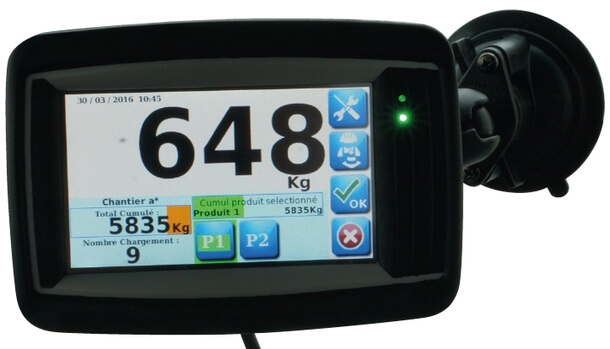

Graphic version

The pluses:

  1. Possibility to cumulate.
  2. Large display with backlight.
  3. Audible warning in case of overload.
  4. Readable from over 5 metres.
  5. Easy to use, robust indicator.

Features

  • With 0-5 V / 0-250 bar pressure sensor.
  • Buzzer and overload warning.

Contents

  • 1 x 4.3" touchscreen display
  • 1 capteur de pression 0-250 bar. Pression max. : 750 bar.
  • 1 harness (power supply + sensor).
  • 1 fixing arm with suction cup.
  • 1 free pressure tap to be defined.
Graphic housing for weighing system

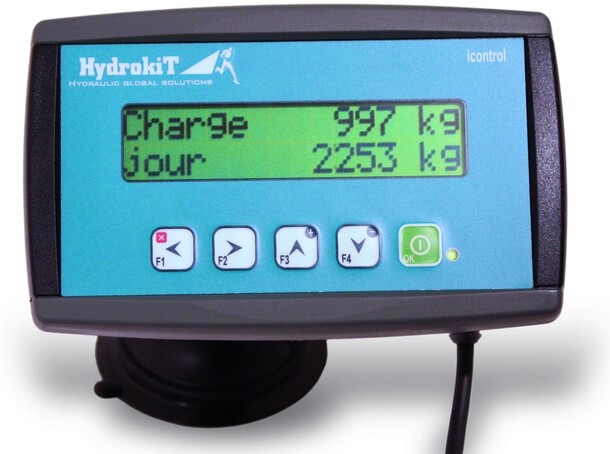

Electronic version

Electronic version for weighing system

Features

  • Power supply: 10 - 30 VDC.
  • Dimensions: 155 mm x 95 mm.
  • Characters : 9.66 x 4.84 mm.
  • M12 connector - 5 points at the back.
  • Stainless steel sensor.
  • Suitable for: front loader, lift, forklift...
  • Not suitable for telescopic handlers.

Contents

  • 1 display.
  • 1 pressure sensor 0-250 bar (other ranges on request). Max. pressure 750 bar.
  • 1 harness (power supply + sensor)..
  • 1 fixing arm with suction cup.
  • 1 free pressure tap to be defined.
