Pedestrian detection
Drive safely on your construction sites

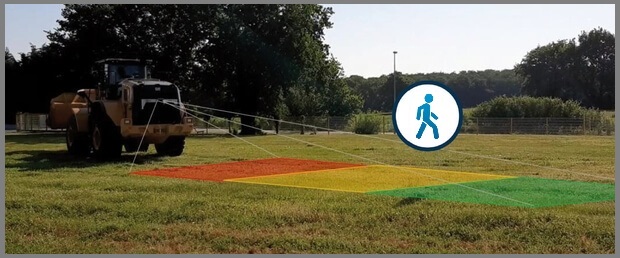

In order to improve the safety of equipment and users, Hydrokit has developed an innovative solution to limit the risks of collision between machinery and pedestrians on your sites. This system, using cameras equipped with artificial intelligence, allows to recognize and to warn the driver of the presence of a pedestrian in the risk area. The detection activates an audible and/or visual signal that can be configured according to the user's wishes. This solution is easily mounted on all mobile machines and works day and night.
Benefits
SECURITY : Detects only pedestrians
EFFICIENCY : Provides an early warning to the driver in hazardous areas.
CUSTOMIZABLE : Detection zones and alarms are all configurable via wifi
EXTREME CONDITIONS : Works day and night
Technical specifications
Screen :
- All manual actions are accessible via the touch screen
- 3 HD cameras can be connected
- Supply voltage: 10-32 Vdc
- Resolution : 1024 x 3 x 600
- Horizontal viewing angle: 140° (horizontal)
- Camera dimensions: 95x60x70 mm
- Operating temperature: Min = -20°C / Max = +70°C
Camera :
- Supply voltage: 10-32 Vdc
- Resolution : 1920x1080
- High Definition video output: 1080P
- Horizontal viewing angle: 140° (horizontal)
- Operating temperature: Min = -20°C / Max = +70°C

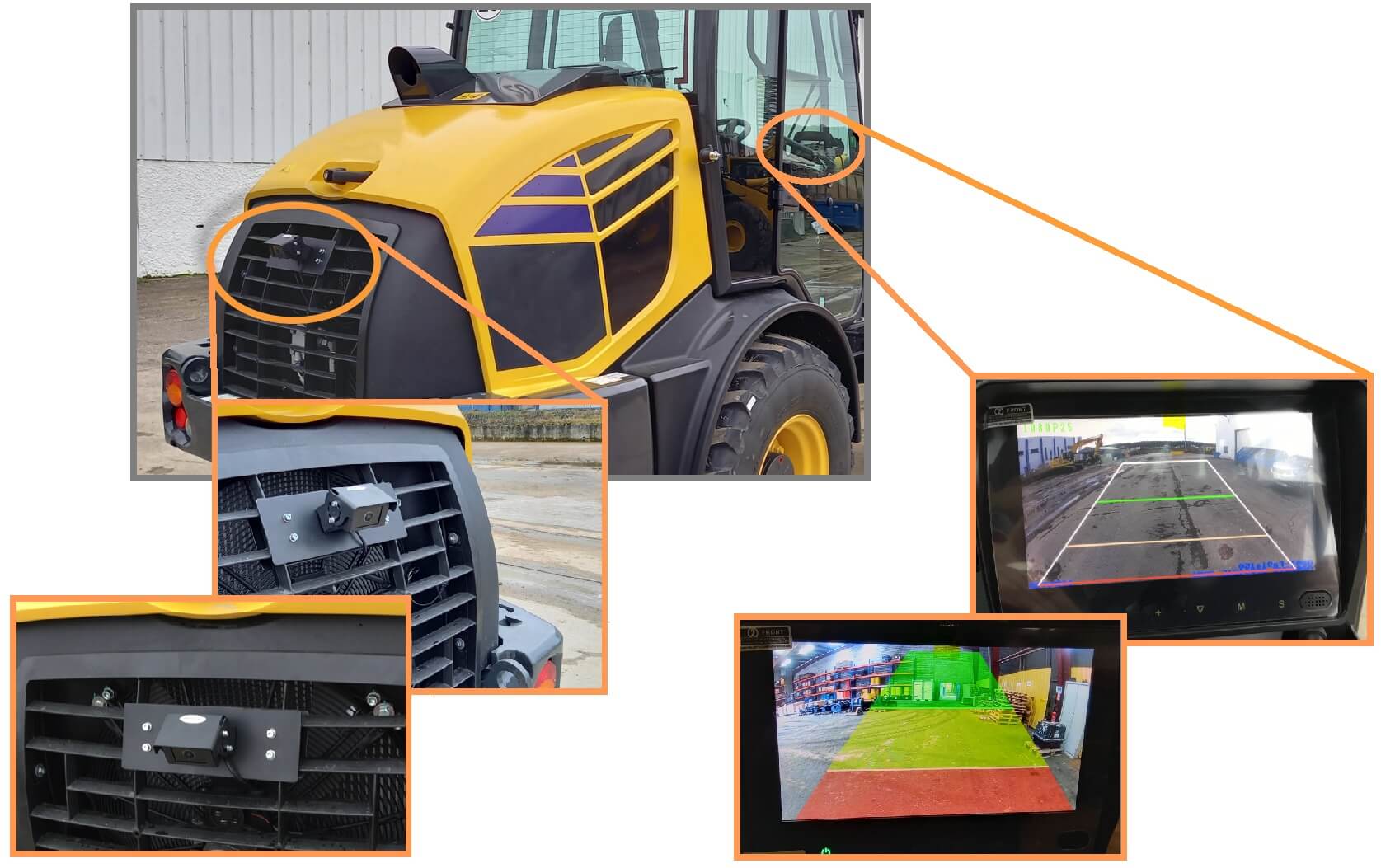

Composition of the kit
We offer you a tailor-made kit:
-
Monitor 7'' HD (17cm) touch screen with internal buzzer
-
Camera IP69K integrating artificial intelligence for a detection zone of 0.5m to 12m
-
5 - 10 or 20m cable extension connecting the monitor to the camera
-
Setting up risk zones and alarms by wifi via a tablet or smarphone
Options :
-
Additional cameras (up to 3 cameras)
-
Simultaneous multi-display monitor
-
External beeper (buzzer)
-
Visual signal (flashing lights, rotating beacon)
