Hydrokit

Dust suppression for excavators

Réduisez les poussières sur vos chantiers

  1. Assembly by us, before delivery or on site, for new machines or already in use
  2. Economical by using water without corrosive additives
  3. Easy to use by connecting to the water system
  4. Integrated cleaning lance

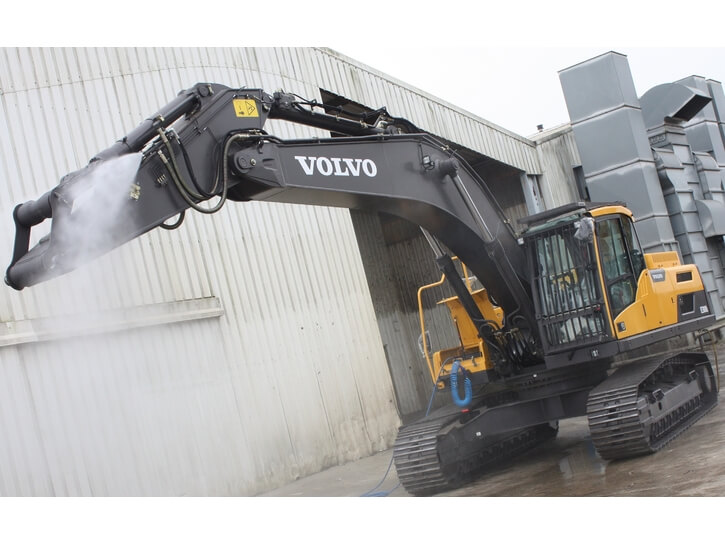

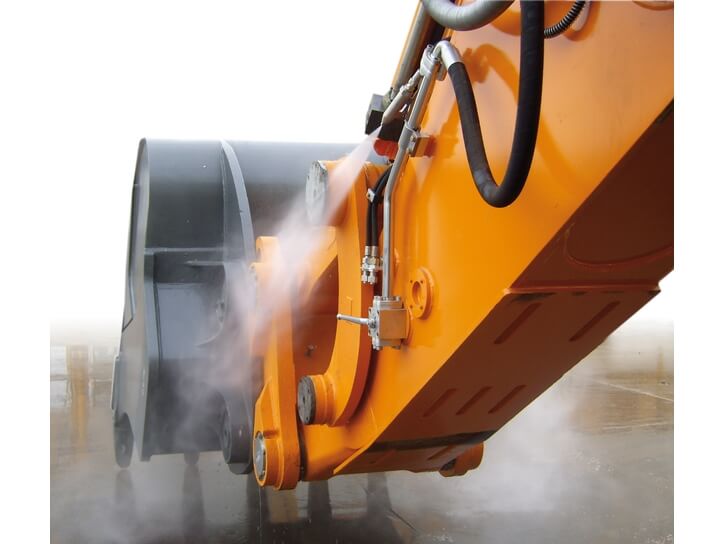

By spraying water at the tool from the end of the dipper

Composition of the kit

  1. Water pump with hydraulic motor in a closed sheet metal box
  2. Flow regulator
  3. Water connection
  4. Two stainless steel spray booms with 3 spray nozzles
  5. Hydraulic and water connection hose assembly
  6. Harness with in-cab control switch

Features :

  • Hydraulically driven high pressure pump with independent circuit
  • Protection by water pressure sensor in supply (stops the pump if the pressure is too low)
  • Position and number of nozzles according to the tools, with adapted protections

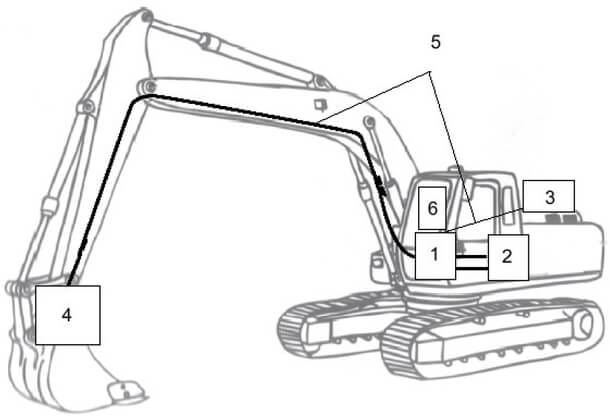

Dust suppression diagram for excavators

By spraying air from the top of the cabin

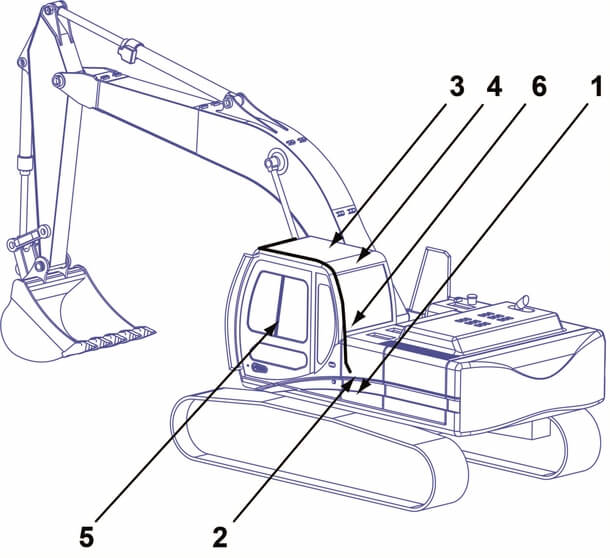

Top dust suppression scheme for excavators

This solution also allows for the blowing out of engine filters and the cleaning of machine coolers.

The + :

  • Assembly by us, before delivery or on site, for new machines or those already in use
  • Work better with clean windows, in automatic cycle
  • Complete kit with compressor, booms and nozzles
  • Simplify maintenance with air on the machine

Composition of the kit :

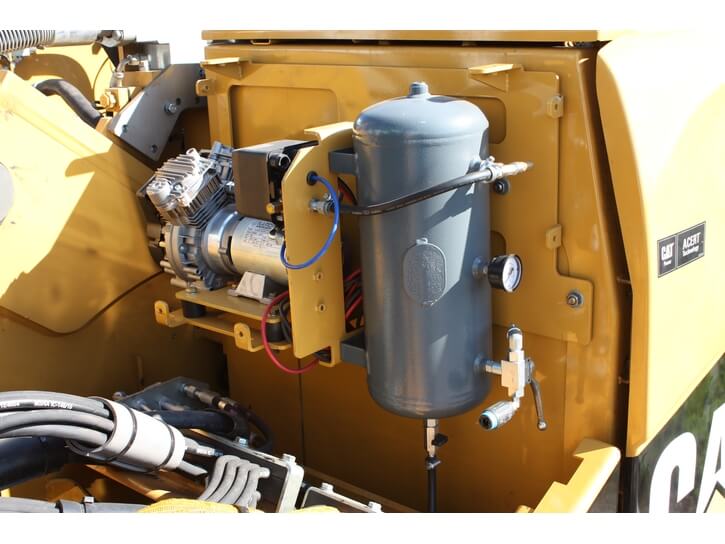

  1. Compressor.
  2. Tank.

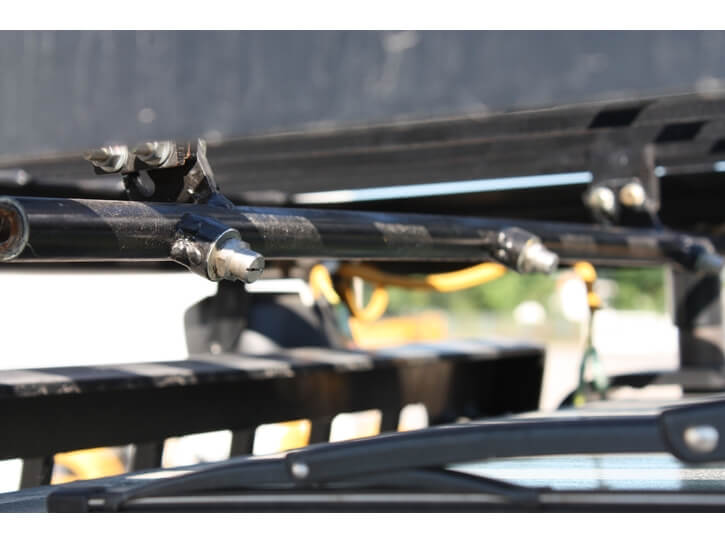

  3. Blower bar.
  4. Control switch positioned in the cab.
  5. Electrical module positioned in the cab.
  6. Piping.

Features :

  • Electric drive with protection module or hydraulic drive
  • 15 or 50 litre tank
  • Integration on the hydraulic circuit of the machine (autonomous system)
