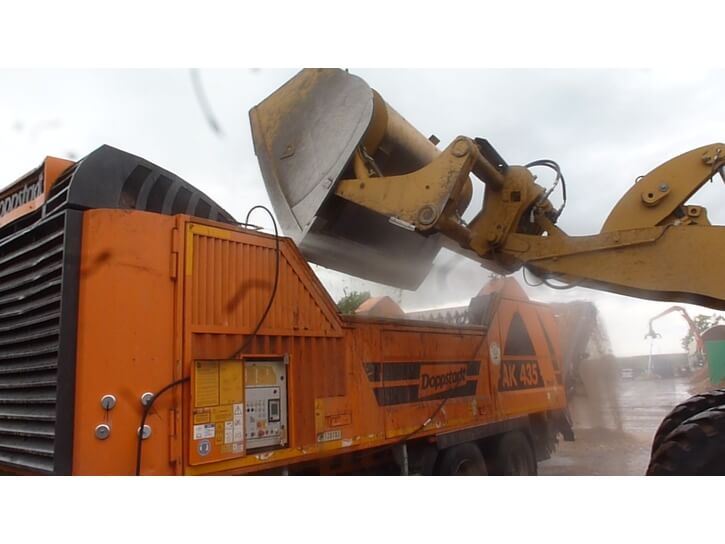

Water-based dust suppression for shredders
Reduce dust on your construction sites
- Consistent spray quality, insensitive to wind
- No material to move as everything is on board the shredder
Features :
- Hydraulically driven pump, with independent circuit
- Distribution of nozzles to the various dust-generating areas (shredder, belt, etc.)
- Automatic operation according to the speed of the crusher
- Integrated buffer tank
Technical information
Water
-
Water requirement : 35 to 100 l/min (passes through a buffer tank)
-
Water flow rate to the nozzles: from 17 to 95 l/min (adjustable flow rate)
-
Working pressure: 10 to 50 bar
-
Filtration: cleanable water filter
-
Nozzles: supplied with nozzle holders, protective covers and swivel nozzle feet (In total: 16 nozzles that mist the load, the conveyor belt and the pile at the end of the shredder))
-
Drainage: cap on tank, valve on pump

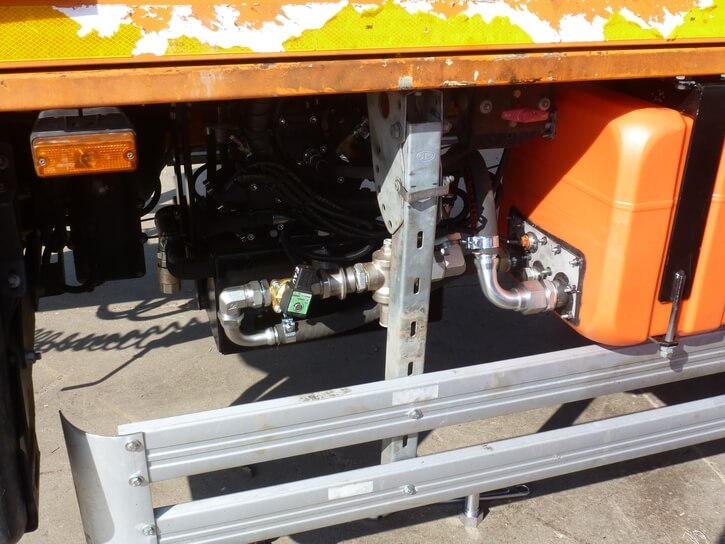

Hydraulics
-
Piqué on the machine's circuit without penalising it
-
Filtration: cartridge oil filter
-
Control box
-
Plug-in box with low and high level detection, mill speed information and pump control
-
Control knob mounted on the original cabinet
